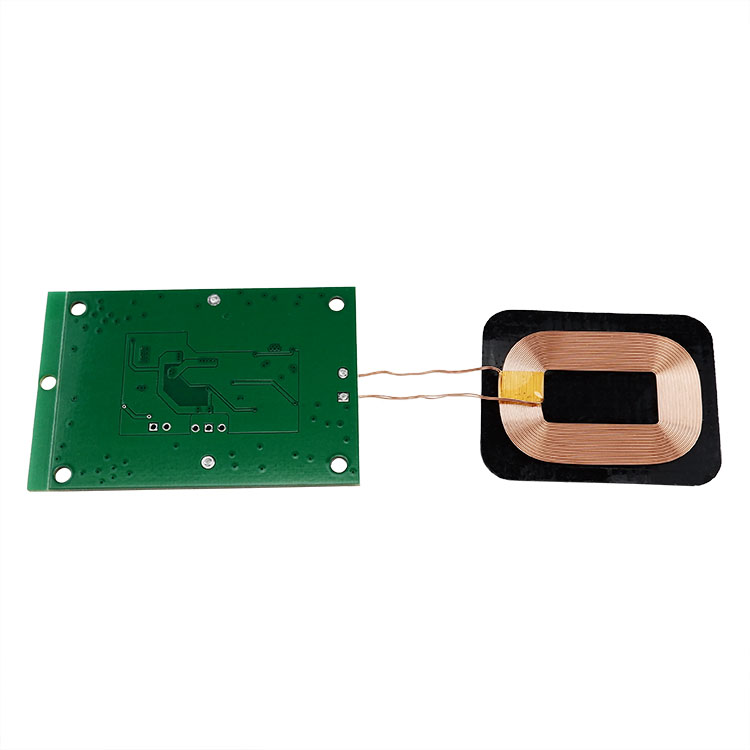

5W Receiving Module for Mobile Power Supply
1, working voltage and current: 9V/2A, 12V/2A (support QC/PD and other fast charging)
2, wireless output voltage and current: 5V/1A, 9V/1.1A, 9V/1.66A
3, wireless output power: 5W/7.5W/10W/15W
4. Charging distance 2-8mm shall be fine-tuned according to customer's actual conditions
5. Charging frequency: 87-207khz
6. Foreign body protection FOD
7, PCBA size specification: 29 *40mm (can be customized)
8, coil specifications: 50*3MM lead length: 40mm (can be customized change)
9, power plug specifications: DC-005 2.0 (customizable)
10, power indicator light: blue light flashing off power 3 times, work on, off when no load. Foreign body protection flashing light (customizable change)
