A High-Performance Charging Pad Depends on a Reliable Wireless Charging Module

A charging pad may have a simple appearance, but its performance is determined largely by the wireless charging module inside it. This module controls power conversion, device detection, output adjustment, temperature management, and safety protection. Therefore, a high-performance charging pad depends on a reliable module to deliver efficient and stable power transmission.

How Does a Charging Pad Work?

A charging pad uses electromagnetic induction to transfer energy without a direct electrical connection to the device. Its wireless charging module sends alternating current through a transmitter coil, creating a changing magnetic field.

When a compatible smartphone, smartwatch, or earbud case is placed on the charging pad, the receiver coil inside the device converts the magnetic field into electrical energy for the battery.

According to the Wireless Power Consortium, an inductive charging system requires both a transmitter coil and a receiver coil. The distance, alignment, and coupling between the two coils influence power-transfer efficiency.

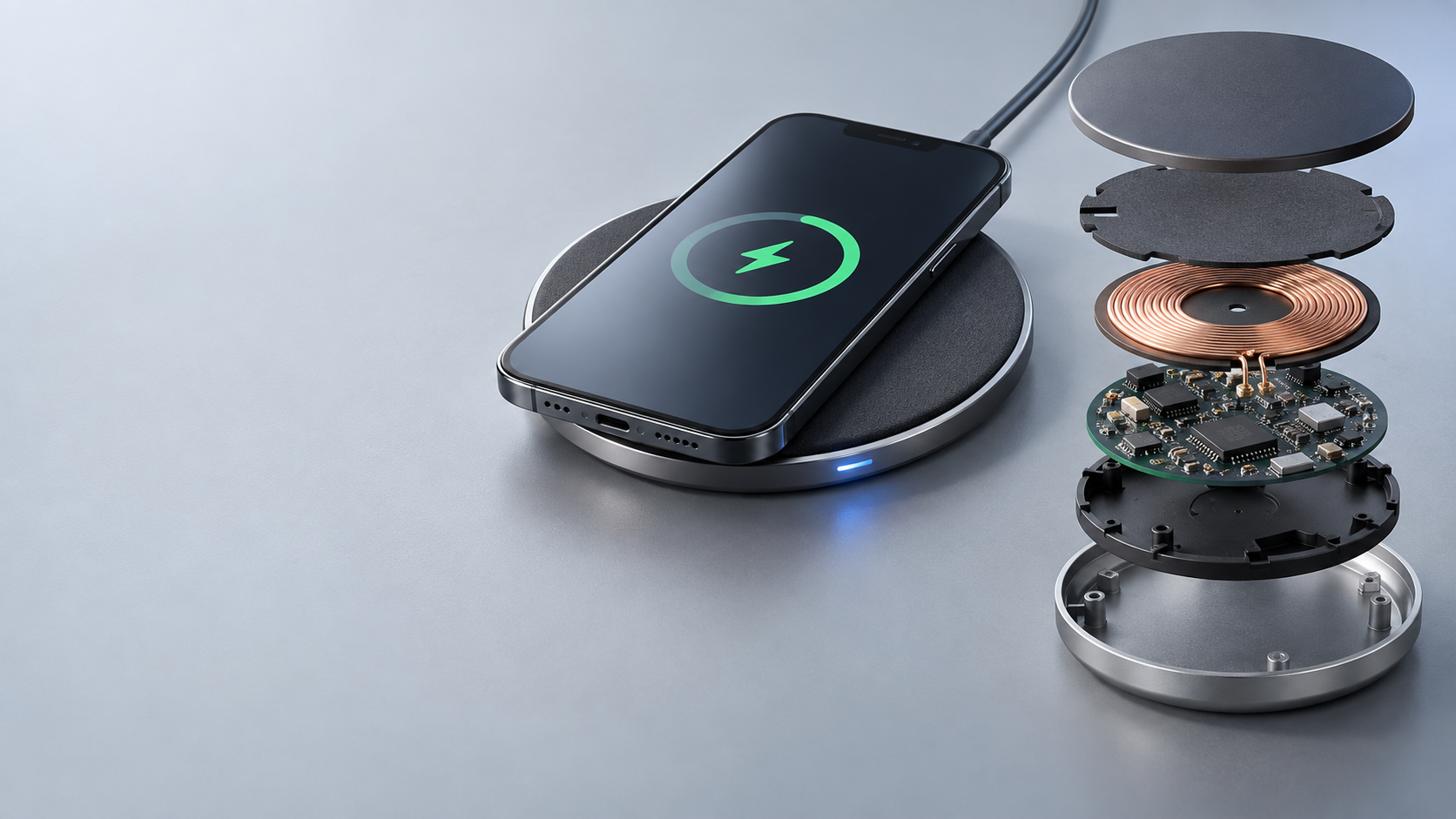

What Is Inside a Charging Pad?

A typical charging pad contains:

• A wireless charging PCBA

• One or more transmitter coils

• A power-management IC

• Ferrite shielding

• Temperature and current protection

• A power-input interface

• A protective housing

The housing provides the charging surface, but it does not transfer power by itself. The module and transmitter coil perform the essential electrical work. As a result, two products with similar external designs can offer very different charging performance.

Why Module Quality Matters

The wireless charging module affects four important aspects of a charging pad.

Charging Efficiency

Coil dimensions, winding quality, circuit design, operating frequency, and coil alignment all influence efficiency. When the transmitter and receiver coils are poorly aligned, less energy reaches the device and more energy may be converted into heat.

Charging Stability

A reliable charging pad should maintain consistent output when the input voltage changes or the device moves slightly. Stable communication between the transmitter and receiver can reduce charging interruptions.

Thermal Management

Wireless power transfer naturally produces some heat. Suitable coil matching, ferrite shielding, efficient electronic components, and proper housing design help control temperature and reduce unnecessary energy loss.

Safety Protection

A well-designed module may provide overvoltage, overcurrent, overtemperature, short-circuit, and foreign-object protection. These functions help a charging pad respond safely when abnormal conditions occur.

Coil Alignment Is Essential

Accurate alignment between the transmitter and receiver coils is one of the most important factors in wireless charging.

A single-coil design is compact and economical, but users must place their devices within a relatively specific area. A multi-coil design can provide a larger active charging zone, although it may increase cost, circuit complexity, and heat-management requirements.

Magnetic positioning can also help keep compatible devices in the correct location. This solution is particularly useful for smartwatches, earbuds, and compact electronic products.

For these reasons, successful charging pad development requires the coil, module, shielding, housing, and device position to be designed as a complete system.

What Should Manufacturers Consider?

Before beginning a charging pad project, manufacturers should define:

• Target charging power

• Input voltage and interface

• Coil size and inductance

• Single-coil or multi-coil structure

• Effective charging distance

• Housing material and thickness

• Thermal-management requirements

• Compatible devices

• Product dimensions

• Required safety functions

• Certification requirements

• Prototype and order quantities

Testing should be performed inside the final product enclosure. Housing materials, coil position, shielding, and surface thickness can affect charging efficiency and temperature.

Common Applications

A charging pad can be used in smartphone chargers, smartwatch docks, TWS earbud stations, automotive consoles, office furniture, hotel rooms, medical products, and multi-device charging bases.

Each application has different requirements. A smartwatch model may need a small coil and magnetic positioning, while a desktop charging pad may require a larger active area or a multi-coil structure.

How to Select a Supplier

A suitable supplier should offer more than a standard component quotation. Buyers should evaluate customization capability, engineering support, sample service, testing procedures, quality control, production consistency, lead time, and minimum order quantity.

When requesting a solution, buyers should provide product drawings, target power, housing details, charging distance, input requirements, intended devices, and estimated order volume. This information allows the supplier to recommend a more suitable coil and module for the final charging pad.

For wireless charging coils, PCBA solutions, and customized modules, visit the Golden Eagle Alibaba storefront. Buyers should confirm specifications, compatibility, certification status, pricing, and production requirements directly with the supplier.

Frequently Asked Questions

Can a charging pad operate without a wireless charging module?

No. The charging surface and housing cannot transmit controlled wireless power independently. The product requires a transmitter coil, control circuit, power input, and protection functions.

What affects charging pad efficiency?

The main factors include coil alignment, charging distance, coil quality, shielding, circuit design, input power, housing material, temperature, and receiver compatibility.

Does every charging pad use the same module?

No. Module selection depends on the required output, product size, input voltage, coil structure, intended device, thermal design, and certification requirements.

Is a multi-coil design always better?

Not necessarily. Multiple coils may create a larger active area, but they can also increase size, cost, circuit complexity, and heat. The best structure depends on the product application.

Conclusion

A high-performance charging pad depends on a reliable wireless charging module. Efficient and stable operation requires the correct combination of coil design, power control, shielding, thermal management, safety protection, and mechanical structure.

Manufacturers should select the module early, test it inside the final enclosure, and work with an experienced supplier. This approach can reduce development risks and improve the performance, safety, and user experience of the finished charging pad.
