Complete Guide To Custom Wireless Charging Coils: From Standard To Bespoke Solutions

With the growing popularity of wireless charging technology, consumer electronics, smart home devices, and industrial equipment are demanding greater flexibility and efficiency in their charging solutions. Many engineers and procurement professionals face a core question during the selection process: Can the coil in a wireless charging module be customized? The answer is a resounding yes. This article delves into the feasibility, key parameters, application scenarios, and considerations of customizing qi wireless charging coil solutions, helping you make more informed decisions.

Can Wireless Charging Module Coils Be Customized? Absolutely.

The core of wireless charging lies in the electromagnetic induction or magnetic resonance between the transmitting and receiving coils. While standard qi wireless charging coil solutions can meet most general needs, customized qi wireless charging coil solutions become crucial when facing special shapes, space constraints, power requirements, or efficiency optimization.

Why Customize a Wireless Charging Coil?

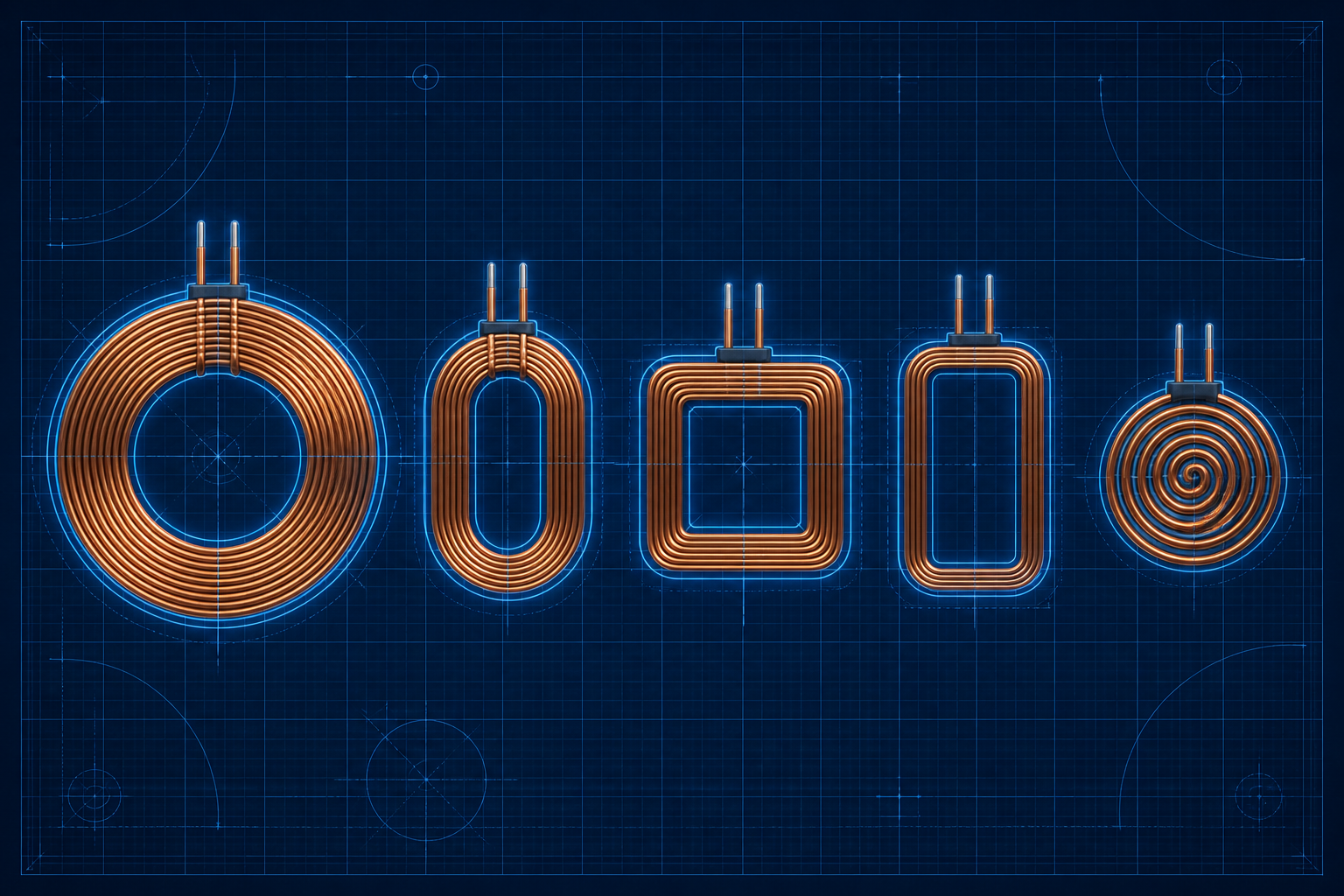

1. 1.Space Constraints and Shape Adaptation: Many products have compact and irregular internal spaces where standard circular or square coils cannot effectively utilize the area. Custom qi wireless charging coil designs can be tailored to the product's casing or internal structure, such as D-shapes, racetrack shapes, or more complex geometries, maximizing space utilization.

2. 2.Power and Efficiency Optimization: Different applications have varying requirements for charging power and efficiency. By adjusting parameters like the number of turns, wire gauge, inductance, and Q-value of the qi wireless charging coil, transmission efficiency and power can be optimized for specific working distances and alignment methods.

3. 3.Multi-Coil and Array Designs: To achieve wider free-position charging or simultaneous charging of multiple devices, multi-coil arrays or specific coil layouts are often required, which typically necessitate a custom qi wireless charging coil.

4. 4.Special Materials and Processes: Certain operating environments (e.g., high temperature, high humidity, strong interference) may require special coil substrates, shielding materials, or encapsulation processes to ensure stability and longevity.

5. 5.Cost and Performance Balance: While meeting performance requirements, customization can optimize material usage and production processes, achieving better cost-effectiveness at specific volumes.

Key Parameters and Considerations for Customizing Wireless Charging Coils

When considering a custom qi wireless charging coil, you need to clarify the following key parameters to communicate effectively with suppliers:

1.Operating Frequency: The operating frequency of the wireless charging system (e.g., 100-205kHz for the WPC standard, or 6.78MHz for the AirFuel standard) directly impacts the qi wireless charging coil design.

2.Target Power: How much power do you need to transmit (e.g., 5W, 15W, 30W, or higher)? This determines the wire gauge, number of turns, and overall size of the qi wireless charging coil.

3.Coil Size and Shape: Length, width, and height constraints of the available space, as well as the desired coil shape.

4.Inductance and Q-Value: These two parameters are critical for resonant circuit matching and efficiency. Suppliers typically provide recommendations based on your circuit design.

5.Transmission Distance and Alignment Tolerance: The expected charging gap (Z-axis height) and the movable range in the X/Y axes.

6.Shielding Requirements: Whether ferrite sheets or other shielding materials are needed to reduce eddy current losses and interference with surrounding metals.

7.Environmental and Reliability Requirements: Operating temperature range, waterproof and dustproof ratings, vibration resistance, etc.

8.Cost and Volume: The tooling costs and unit price of a custom qi wireless charging coil are closely related to the order volume.

FAQ: Frequently Asked Questions About Custom Wireless Charging Coils

Q1: What is the typical lead time for custom coils?
A1: The timeline from confirming requirements, design, prototyping, to mass production varies depending on complexity. Simple modifications may take only 1-2 weeks, while entirely new designs may take 3-6 weeks or longer. Prototype confirmation is a critical step.

Q2: Will custom coils cost significantly more than standard products?
A2: Initial sample and tooling costs will be higher. However, in mass production, if the design is well-optimized, the unit price may be comparable to or even better than standard products, as unnecessary redundant designs can be eliminated. The key lies in the volume and design optimization.

Q3: How do I ensure the custom coil matches my circuit?
A3: Close collaboration with the supplier is crucial. Provide your circuit diagram, PCB layout, and expected performance metrics. Professional suppliers will offer qi wireless charging coil parameter recommendations and may assist with matching and tuning.

Q4: What are the common application scenarios for custom coils?
A4: Wearable devices (watches, bands), power tools, medical equipment, smart home (embedded furniture), industrial sensors, AGV carts, and specific smartphone/tablet models.

Conclusion

Customizing wireless charging module coils is not only feasible but also key to achieving optimal performance and user experience in many innovative applications. By clarifying your own needs and working closely with experienced coil suppliers, you can obtain tailor-made wireless charging solutions, helping you stand out in fierce market competition. Whether pursuing ultimate space utilization or specific power efficiency goals, customization offers endless possibilities.

In the process of exploring qi wireless charging coil customization, thorough communication, clear parameters, and understanding the underlying technical principles will be the keys to your success.
