Custom Wireless Charging Module: What Should You Confirm Before Customization?

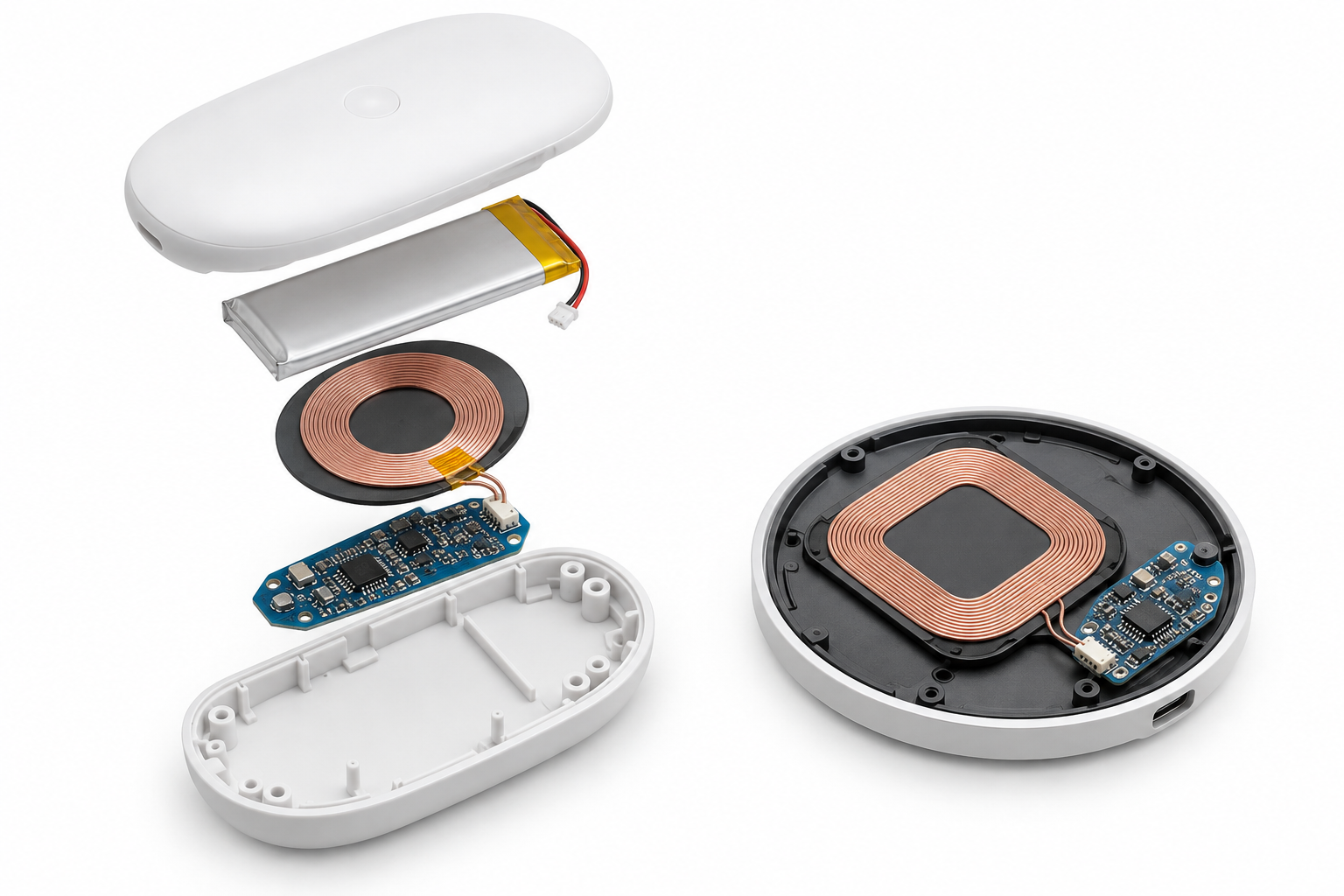

A custom wireless charging module is a wireless power solution designed around a product’s dimensions, battery, target power, enclosure, and operating conditions. It normally consists of a transmitter or receiver coil, PCBA, power-management circuit, connecting wires, and magnetic shielding material.

If a standard module cannot fit inside your product, or if your application has special requirements for coil shape, charging distance, temperature, or power, a custom wireless charging module may be the better choice.

Which Products Need a Custom Wireless Charging Module?

Standard modules are suitable for products with sufficient internal space and conventional power requirements. A customized solution is more appropriate in the following situations:

• The available internal space is too limited for a standard coil or PCB.

• The enclosure requires a round, square, oval, rectangular, or irregularly shaped coil.

• The product needs to eliminate an exposed USB charging port.

• The enclosure is relatively thick, creating a larger distance between the transmitter and receiver coils.

• Metal components inside the product may interfere with wireless power transmission.

• The product has specific requirements for charging efficiency, temperature, alignment tolerance, or sealing.

• The module must connect to a specified battery, motherboard, or power system.

Wearable devices, handheld terminals, smart home products, portable audio equipment, sensors, personal care devices, and sealed electronic products may all benefit from a custom wireless charging module.

What Information Is Required Before Customization?

To evaluate a custom wireless charging module efficiently, the following information should be prepared.

1. Transmitter or Receiver Application

First, confirm whether your product needs to transmit power or receive power wirelessly.

A charging base normally uses a transmitter module, while the electronic product being charged uses a receiver module. Some projects require both the transmitter and receiver to be developed together to achieve better system matching.

2. Target Charging Power

Common wireless charging requirements include 5W, 10W, and 15W. However, the correct power level should be selected according to battery capacity, allowable charging current, expected charging time, and thermal conditions.

Higher power is not always better. A properly matched power level provides a better balance between charging speed, temperature, and long-term stability.

3. Available Internal Space

Provide the maximum length, width, and thickness available for the coil and PCBA. Product drawings, 3D files, internal layout drawings, or physical samples are especially helpful.

This information allows engineers to determine whether the PCB needs to be reduced, whether the coil shape should be changed, or whether the position of the wires and connectors must be adjusted.

4. Battery Specifications

Battery voltage, capacity, maximum charging current, and connector type all influence the receiver solution.

If the battery specifications do not match the output of the wireless charging module, the product may experience slow charging, interrupted charging, unstable output, or excessive heat.

5. Enclosure Material and Charging Distance

Plastic, glass, wood, and metal affect wireless charging differently. The enclosure material and thickness should be confirmed, together with the actual distance between the transmitter and receiver coils.

Excessive distance or poor coil alignment can reduce charging efficiency and increase temperature. Metal parts near the coil must also be identified during the design stage.

Custom Wireless Charging Module Development Process

A typical custom wireless charging module development process includes:

1. Requirement confirmation

2. Technical evaluation

3. Coil and PCBA design

4. Prototype production

5. Functional testing

6. Pilot production

7. Mass production

During prototype testing, engineers should evaluate charging efficiency, operating temperature, alignment tolerance, charging distance, output stability, foreign object detection, and long-term operating performance.

A prototype that charges successfully is not automatically ready for mass production. Product consistency across different production batches must also be verified.

Standard Module vs. Custom Module

A standard wireless charging module normally has a shorter delivery time and is suitable for products with conventional dimensions and electrical requirements.

A custom wireless charging module can be adjusted according to the product’s available space and technical specifications. Customizable items may include:

• Coil dimensions and shape

• PCB dimensions and layout

• Input and output parameters

• Charging power

• Wire length and direction

• Connector type

• Transmitter and receiver matching

If the product is still in the design stage, the wireless charging solution should be evaluated as early as possible. Confirming the coil position, PCB dimensions, enclosure thickness, and thermal space early can reduce the risk of structural changes and repeated tooling later.

What Should Be Tested Before Mass Production?

Before moving from samples to mass production, the following areas should be tested:

• Charging efficiency

• Operating temperature

• Coil alignment tolerance

• Effective charging distance

• Output stability

• Foreign object detection

• Long-term operation

• Product-to-product consistency

Testing should be performed in the actual product enclosure whenever possible because enclosure materials, metal components, batteries, and surrounding electronics may affect the final charging performance.

FAQ

What drawings are required for a custom wireless charging module?
It is best to provide product dimensions, an internal structure drawing, or a 3D file. If complete drawings are not yet available, the available space, battery specifications, and target power can be used for an initial evaluation.

Can wireless charging be added to an existing product?
In many cases, yes. However, the internal space, battery system, enclosure material, metal component locations, and charging distance must be evaluated first.

Can the coil and PCBA be customized separately?
Yes. The coil size, shape, thickness, and wire direction can be customized. The PCB dimensions, interface, connector, input, and output parameters can also be adjusted according to the project.

What information is needed for a quotation?
The main information includes product dimensions, battery specifications, required charging power, transmitter or receiver application, estimated order quantity, and any special structural requirements.

What should be tested between prototyping and mass production?
The main tests include efficiency, temperature, alignment, charging distance, output stability, long-term operation, and production consistency.

The key to developing a custom wireless charging module is not simply replacing a standard coil. The coil, PCBA, battery, enclosure, and product structure must work together as a complete system.

If you are developing a wireless charging product, share your product drawings, battery specifications, target power, and estimated quantity. These details will help determine the most suitable customized solution.
