Introduction to Bobbin Inductor Coils

1. What is a Bobbin Inductor?

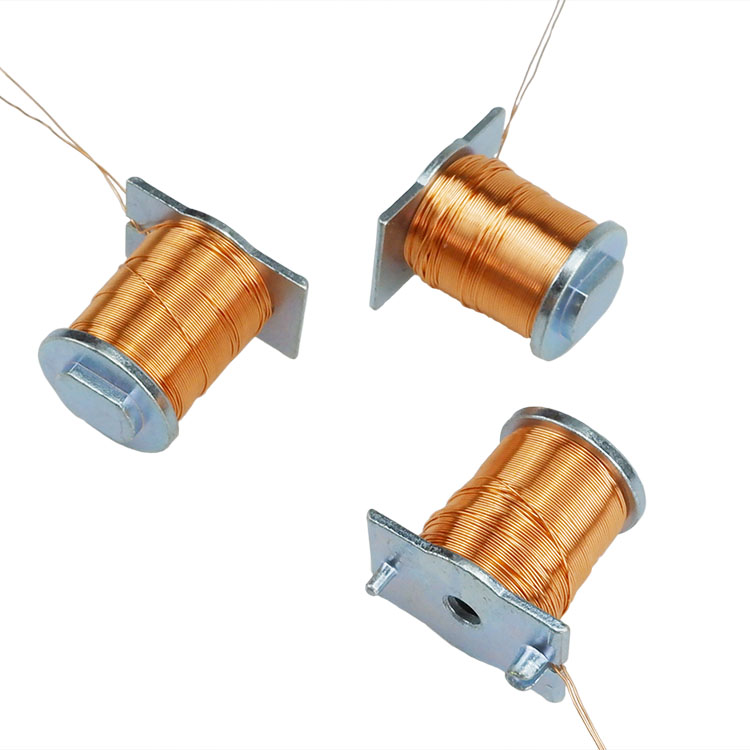

A bobbin inductor is a type of wire-wound inductor where the coil is wound around a specially designed frame or spool (called a "bobbin"). These inductors typically incorporate a magnetic core material (such as ferrite or powdered iron) inserted through the bobbin's center to enhance inductance.

Key Characteristics:

• Structured winding - Provides consistent coil geometry

• Core versatility - Accommodates various core materials/shapes

• Mechanical stability - Bobbin protects windings and facilitates mounting

• Repeatable manufacturing - Enables precise, automated production

2. Construction & Design Features

Bobbin Structure:

• Base material: Usually plastic (PBT, PET, LCP) or ceramic

• Flange design: End flanges maintain winding position

• Terminal options: Pins, solder pads, or lead wires

• Core channel: Central opening for core insertion

Winding Configuration:

• Single or multilayer winding patterns

• Precision winding for controlled electrical parameters

• Optional taps for adjustable inductance

Core Types Used:

• Ferrite rods (for high permeability)

• Powdered iron (for high saturation)

• Laminated steel (for power applications)

3. Advantages & Limitations

✔ Advantages:

✅ Controlled winding geometry - Ensures consistent performance
✅ Enhanced thermal management - Bobbin acts as heat barrier
✅ Mounting convenience - Integrated mounting features
✅ Cost-effective production - Suitable for automation

✖ Limitations:

❌ Size constraints - Larger than some coreless designs
❌ Frequency limitations - Core materials restrict high-frequency use
❌ Fixed winding count - Less flexible than adjustable designs

4. Common Applications

• Power supplies (transformers, chokes)

• Line filters (EMI/RFI suppression)

• Audio equipment (crossover networks)

• Automotive electronics (sensors, ignition systems)

• Industrial controls (relays, contactors)

5. Key Performance Parameters

When specifying bobbin inductors, engineers consider:

6. Manufacturing Considerations

• Automated winding ensures consistency

• Vacuum impregnation protects against moisture

• Lead forming for specific PCB mounting needs

• Customization options for special applications
