Magnetic Wireless Charging Combines Convenience And Precision

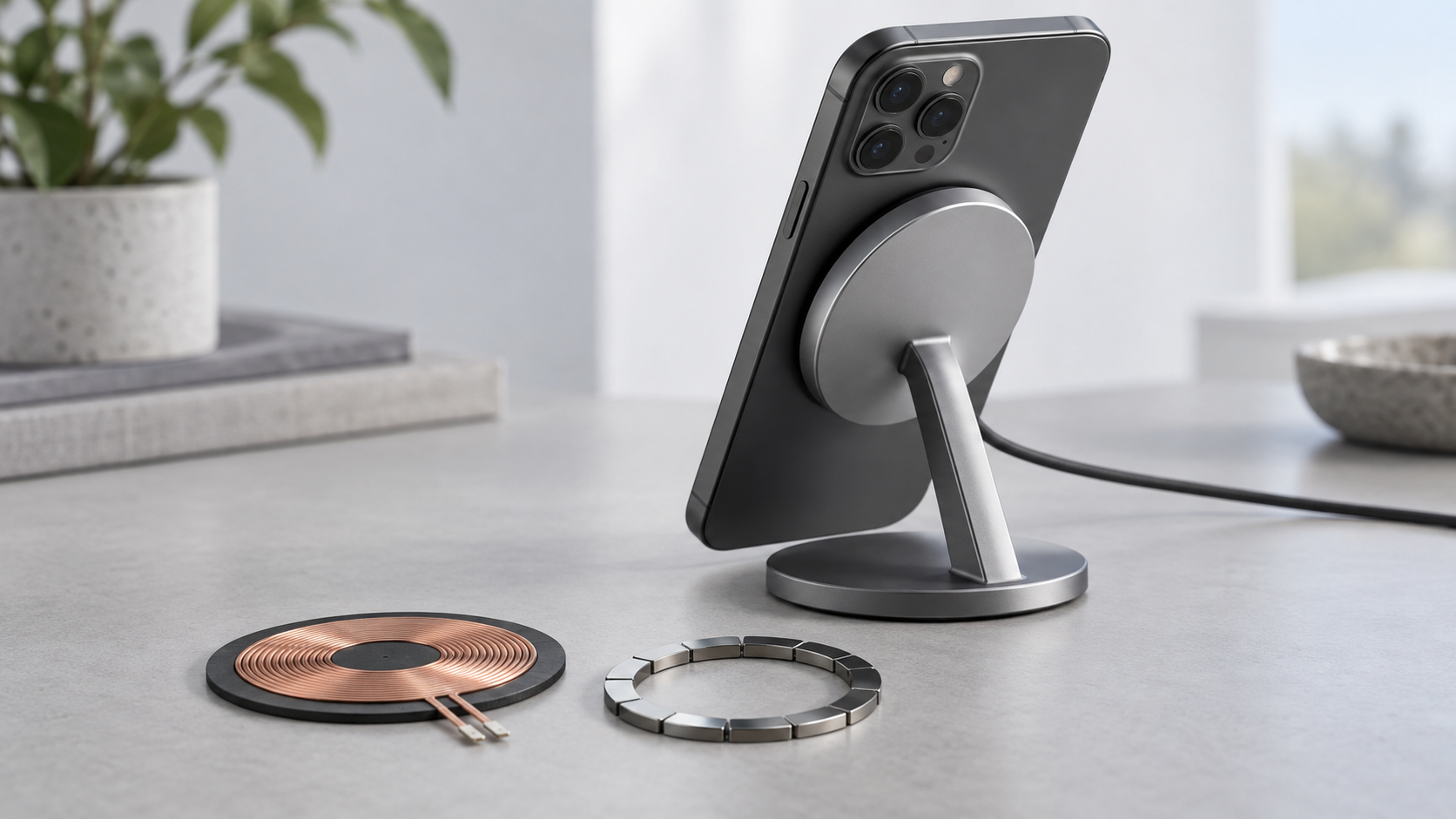

The relationship between magnet and wireless charging technology starts with alignment. Permanent magnets help position a device over a charger, while transmitter and receiver coils transfer energy through electromagnetic induction. The magnets provide attachment and positioning rather than electrical power. Understanding magnet and wireless charging together helps explain why a device can snap into place and charge without a plug being inserted into its charging port.

Magnetic Alignment Supports Convenient Charging

In a typical inductive charging system, the transmitter coil generates an alternating magnetic field. The receiver coil captures energy from that field, and the receiving electronics convert it into power the device can use. Coil position and separation influence this process. With a properly designed magnet and wireless charging arrangement, the device is guided toward the intended charging position, reducing the need for repeated adjustments. The

Wireless Power Consortium explains that alignment magnets position the device while the coils transfer power.

The practical benefit of combining magnet and wireless charging is repeatable placement. A user can return a phone, wearable device, or rechargeable accessory to its dock with less effort. Better alignment can reduce losses associated with poor positioning, but it does not guarantee faster charging in every situation. Actual performance also depends on the device, power adapter, charging electronics, temperature, and distance between the coils.

Qi2 gives magnet and wireless charging integration a standardized framework through its Magnetic Power Profile. This profile defines magnetic attachment and alignment requirements for compatible products. However, adding magnets to an existing charger does not make it Qi2 Certified. Certification applies to products that meet the relevant requirements and complete the applicable testing process. The Wireless Power Consortium’s specification history documents the introduction of the Magnetic Power Profile.

Reliable Performance Depends on the Complete Design

A successful magnet and wireless charging design requires the mechanical and electrical parts to work together. Coil dimensions, inductance, resistance, shielding, magnet placement, housing thickness, and charging circuitry all contribute to the result. A strong magnetic connection alone does not confirm that the coils are correctly aligned or that power transfer is efficient. Engineers must evaluate where the device settles, how far apart the coils remain, and how the system behaves during charging.

For magnet and wireless charging applications, the space between the transmitter and receiver deserves particular attention. Covers, adhesive layers, enclosure walls, and air gaps contribute to the final separation. Nearby metal and unsuitable magnetic materials can also affect operation, so the finished assembly should be evaluated for charging performance and temperature. Texas Instruments identifies coil alignment, relative coil size, and separation as important factors in wireless power performance.

Testing a magnet and wireless charging prototype should therefore include the actual housing, battery, magnets, coils, and electronics. Useful checks include repeated placement, charging stability, temperature rise, and behavior with the intended protective cover. Measurements should be made under defined conditions so that performance claims reflect the complete product rather than an isolated coil or circuit board.

Applications and Custom Development

The combination of magnet and wireless charging can be useful in phone accessories, wearable devices, smart home controls, electronic toys, and other rechargeable products. Magnetic positioning can make docking more convenient, especially when the charging area is small. Compatibility still needs to be confirmed for each application: a device that attaches magnetically to a charger may not support its charging protocol or electrical requirements.

For manufacturers developing magnet and wireless charging products, a custom coil or PCBA module may help address space and integration requirements. A useful project brief includes the target power, available dimensions, intended receiver or transmitter, housing material, charging gap, and desired magnetic attachment.

MIMAN provides customized wireless charging coils, PCBA modules, and complete wireless charging products. Explore MIMAN’s wireless charging solutions for more information, or visit our Alibaba storefront to browse products and send an inquiry.

Frequently Asked Questions

What is the relationship between magnet and wireless charging?
Permanent magnets help align and hold the device. The charging coils and electronic circuits transfer and manage the electrical energy.

Does combining magnet and wireless charging always improve efficiency?
No. Magnetic alignment can reduce losses caused by incorrect positioning, but overall efficiency depends on coil matching, separation, electronics, shielding, and temperature.

Does a magnet and wireless charging product automatically qualify as Qi2 Certified?
No. Magnetic attachment alone does not establish certification. Check the specific product’s certification status through the Wireless Power Consortium.

Can magnet and wireless charging components be customized?
Yes. Coil geometry, shielding, magnet arrangement, connectors, and PCBA dimensions can be developed around an application. The proposed configuration still needs electrical, mechanical, and thermal validation.

What should buyers specify for a magnet and wireless charging project?
Start with charging power, product dimensions, coil separation, housing materials, input and output requirements, and intended device compatibility. Include certification targets and prototype quantities so the supplier can assess the project more accurately.
