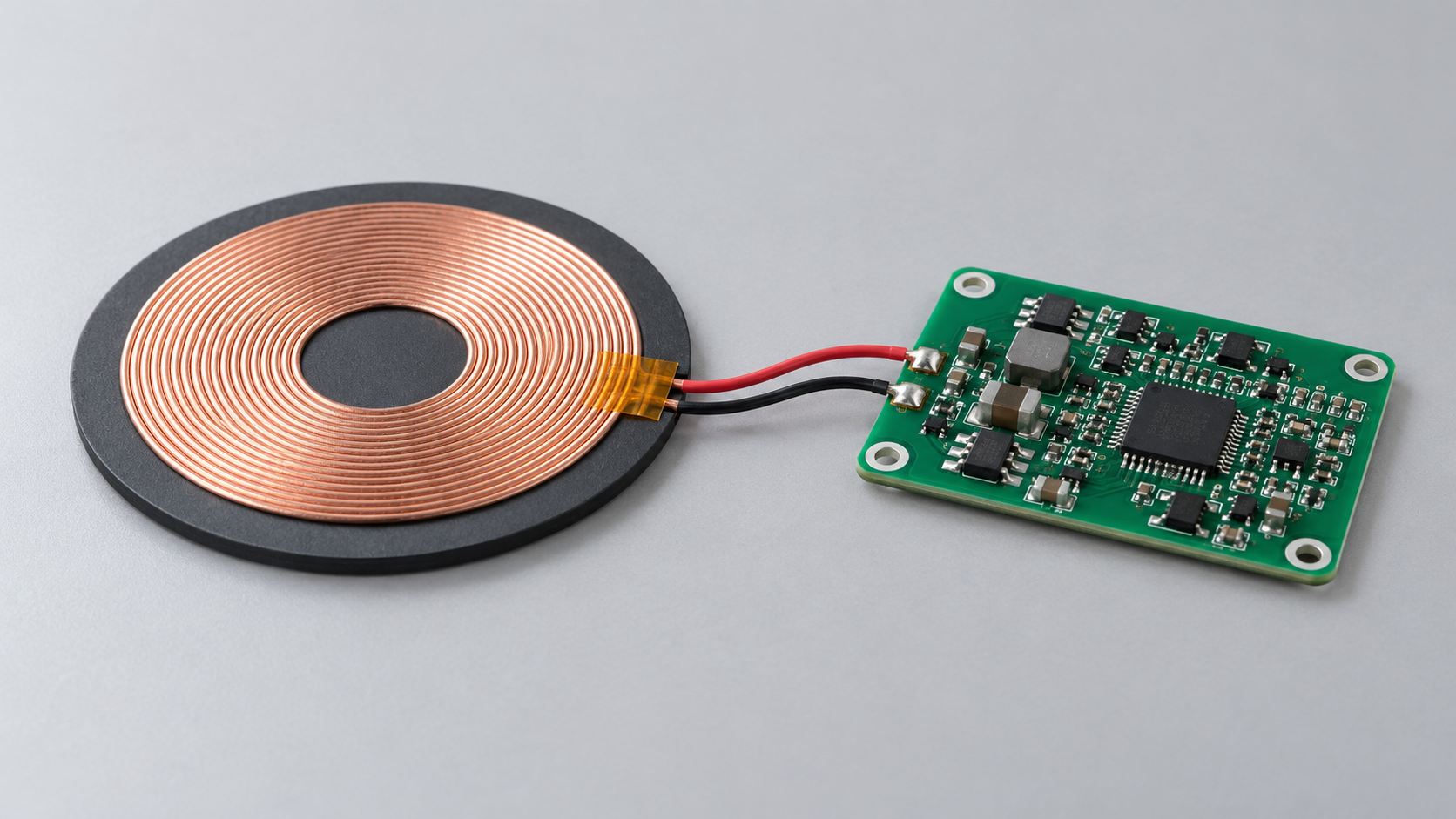

Qi inductive charging works best when the transmitter coil and PCBA are developed as one coordinated system. A coil creates the magnetic field, while the PCBA controls power delivery, communication, protection, and charging behavior. If either part is selected without considering the other, the finished charger may experience slow charging, unstable startup, excessive heat, or limited device compatibility.
The Wireless Power Consortium explains that a Qi system uses a transmitter coil, a receiver coil, and circuitry that manages communication and energy transfer. Therefore, Qi inductive charging cannot be judged by coil size or advertised wattage alone. The complete electrical and mechanical structure determines performance.
In Qi inductive charging, the transmitter coil must match the operating circuit, tuning network, input power, and charging distance. Important parameters include inductance, resistance, quality factor, dimensions, thickness, and lead arrangement. A coil that performs well with one circuit may behave differently with another board because its tuning and control limits differ.
The receiver also sends control information to the transmitter so output can be regulated. Stable Qi inductive charging depends on the coil, resonant components, controller, sensing circuits, and firmware working together. Treating the coil as an isolated component often causes tuning changes later in development.
Physical design directly affects Qi inductive charging. The transmitter and receiver coils need suitable alignment and distance. Excessive separation or offset can reduce power transfer and increase heat. Mechanical guides, magnets, or surface markings can improve placement.
Ferrite shielding, enclosure material, surface thickness, nearby metal, and mounting tolerances also influence Qi inductive charging. Ferrite helps guide the magnetic field, while metal parts can cause interference or heating. The coil and PCBA should be tested inside the real enclosure rather than only on an open bench.
Efficient Qi inductive charging requires more than peak power. The PCBA must regulate output while monitoring electrical and thermal conditions. Poor alignment, unsuitable tuning, resistance, foreign metal, and limited ventilation can create heat. The phone or charger may then reduce power.
A dependable Qi inductive charging system should include voltage and current protection, temperature monitoring, and foreign-object detection. These functions must be validated with the selected coil and enclosure across different phones, cases, positions, adapters, temperatures, and charging durations.
Before developing a custom Qi inductive charging product, define the target devices, power, available space, charging distance, surface material, input source, and thermal limits. Then customize the coil and PCBA together. This approach suits pads, stands, smart furniture, vehicle consoles, lamps, and other integrated products.
The engineering review should include:
Coil dimensions, inductance, resistance, thickness, and lead position
PCBA size, tuning network, controller, input voltage, and connector layout
Ferrite shielding, nearby metal, and enclosure thickness
Alignment tolerance and intended device placement
Temperature rise, foreign-object response, and protection behavior
Compatibility with representative receiver devices
A Qi inductive charging prototype should be evaluated as a complete assembly. Measure power, stability, temperature, alignment tolerance, and abnormal-condition behavior. Changes to the coil, shielding, housing, or PCBA may require retuning.
“Qi compatible” and “Qi Certified” do not have the same meaning. The Wireless Power Consortium states that Qi Certified products undergo independent laboratory testing for safety, interoperability, and energy efficiency. Certification applies to the registered, fully functional transmitter or receiver product; a standalone coil or PCBA is not automatically a certified charger. Buyers can verify certified products in the official.
For a commercial Qi inductive charging product, certification planning should begin early because the coil, PCBA, firmware, enclosure, and thermal behavior all affect the completed product.
Qi inductive charging transfers energy through a magnetic field between a transmitter coil in the charger and a receiver coil in the device. Control circuitry manages communication and power delivery.
No. A coil must match the PCBA’s operating requirements, tuning network, power level, and physical structure. Reliable Qi inductive charging requires electrical and mechanical validation of both parts together.
Better alignment improves magnetic coupling. Poor alignment can reduce efficiency, slow charging, and increase heat. A well-designed Qi inductive charging product should make correct device placement easy and repeatable.
Yes. The coil dimensions, inductance, thickness, ferrite, cable, PCBA shape, connector, input, and mounting structure can be adapted to the application. The customized Qi inductive charging assembly should then be tuned and tested inside the final product.
Reliable Qi inductive charging begins with coordinated coil and PCBA development. The coil establishes the magnetic power-transfer path, while the PCBA controls communication, regulation, protection, and thermal behavior. Designing them together improves efficiency, reduces integration problems, and creates a stronger foundation for compatibility and certification testing.
