The Stable Performance of a Charging Station for Multiple Devices Depends on Coordinated Wireless Charging Modules

A charging station for multiple devices is a product designed to charge two or more devices, such as smartphones, wireless earbuds, and smartwatches. It may combine wireless charging areas, USB ports, and USB-C PD charging ports in one product.

A reliable charging station for multiple devices requires more than installing several coils or modules inside the same enclosure. The total input power, wireless charging modules, coil layout, power distribution, thermal design, and device compatibility must work together.

A Charging Station for Multiple Devices Is a System of Coordinated Charging Units

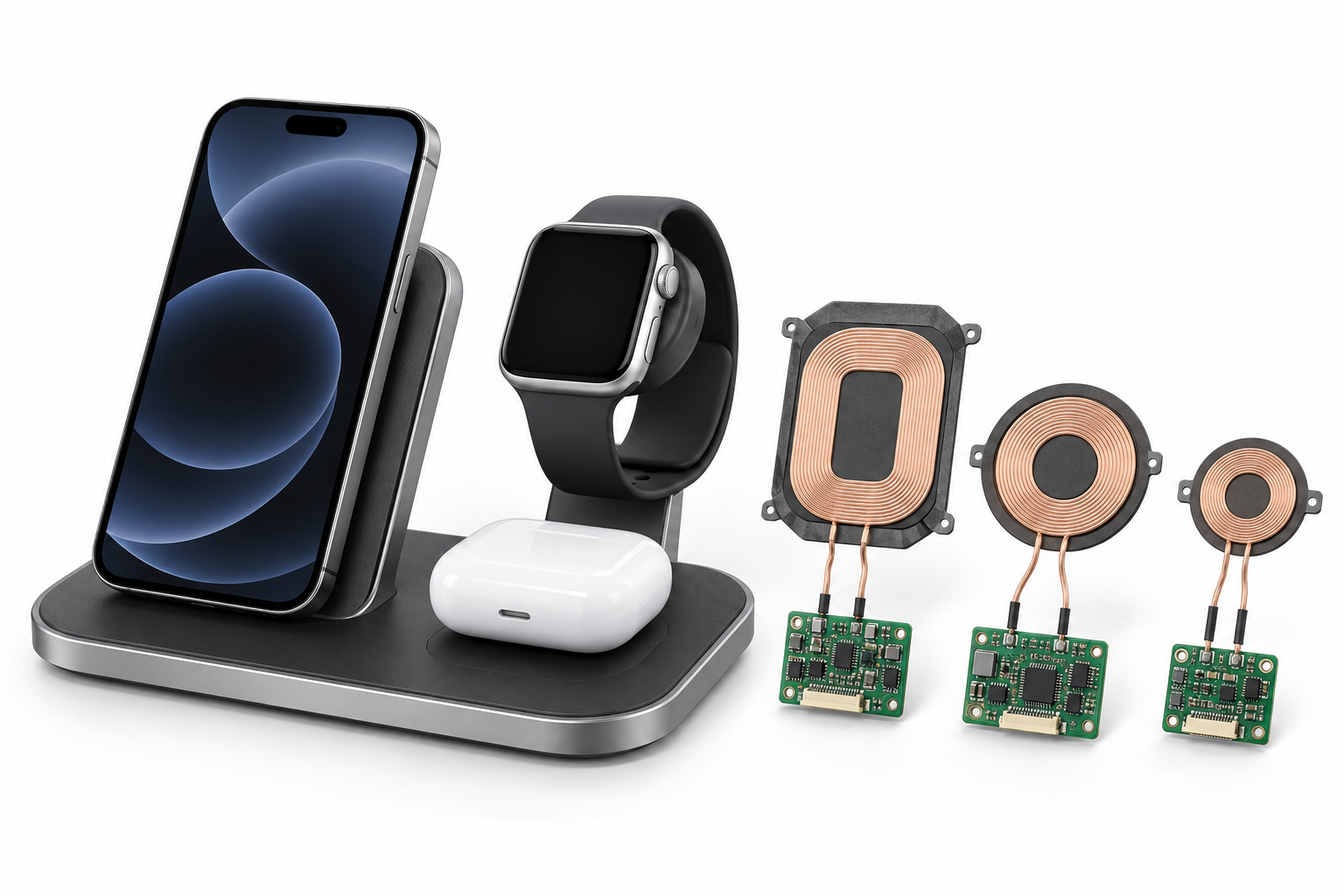

From a structural perspective, a charging station for multiple devices usually contains multiple transmitter coils, one or more PCBAs, an input power circuit, connecting wires, and an enclosure. Different charging areas may be designed for phones, earbuds, or smartwatches, while some products also provide wired USB outputs.

When developing a charging station for multiple devices, the target device, output power, and operating method of each charging position should be defined first. These requirements determine whether the product needs separate modules or an integrated multi-channel PCBA.

Total Power Distribution Determines Simultaneous Charging Stability

When a charging station for multiple devices powers several devices at the same time, all outputs share the available input power. If the adapter, power circuit, or thermal design is insufficient, the product may reduce charging power, charge more slowly, interrupt charging, or generate excessive heat.

When evaluating a charging station for multiple devices, developers should test sustained output with all intended devices charging simultaneously. The input power must cover the combined outputs as well as power conversion losses.

Multiple Coils Do Not Always Mean Simultaneous Multi-Device Charging

In a charging station for multiple devices, multiple coils can serve two different purposes. They may create several independent charging areas, or they may expand the placement area for one device.

The Qi documentation from the Wireless Power Consortium explains that a transmitter can use a coil array to provide a larger charging area and greater positioning tolerance. This type of design does not necessarily support charging several devices at the same time.

To determine whether a charging station for multiple devices supports simultaneous charging, buyers should confirm the number of PCBA channels, the coil control method, and the total power configuration rather than relying only on the number of coils.

Different Devices Require Different Module Configurations

Smartphones, wireless earbuds, and smartwatches may have different receiver structures, power requirements, and alignment methods. A phone charging module should not replace a smartwatch module without proper validation. Magnetic coils must also match the position of the target device.

A stable charging station for multiple devices requires separate evaluation of the coil dimensions, mounting position, PCBA parameters, and structural spacing for each charging area.

The Complete Product Structure Affects Temperature and Sustained Performance

A charging station for multiple devices usually contains several heat-generating components. Closely positioned coils, concentrated PCB layouts, limited internal space, and restricted heat dissipation can cause heat to accumulate.

The Wireless Power Consortium states that enclosure materials, coil and shielding positions, firmware, and the distance between the coil and charging surface can affect wireless power transfer. Components that have performed successfully in another design must still be evaluated after integration into a new product.

Temperature testing for a charging station for multiple devices should record the ambient temperature, individual coil temperatures, critical PCBA temperatures, and enclosure surface temperature. Testing should also determine whether the product reduces power or interrupts charging when several devices are connected.

Sample Validation Must Reflect Real Operating Conditions

A charging station for multiple devices should be tested with the intended power adapter, enclosure, and target devices. The validation process should include:

• Charging one device and several devices simultaneously;

• Changing the order and position of connected devices;

• Testing devices with and without protective cases;

• Testing at low battery levels and near full charge;

• Recording power, temperature, and charging stability during continuous operation.

These records help customers and suppliers establish clear acceptance criteria. They also reduce the risk of a sample working correctly while the final mass-produced product develops problems during actual use.

Module Customization Should Follow Complete Product Requirements

For a charging station for multiple devices project, manufacturers can evaluate multi-channel PCBAs, coil dimensions, lead lengths, connectors, indicator lights, and power distribution according to the product structure.

Miman Intelligent provides wireless charging modules, PCBAs, and wireless charging coils. Customers can share product drawings, target devices, available installation space, input power, output requirements for each charging area, and estimated order quantity. These details help us discuss a suitable module configuration and sample validation plan.

FAQ: Multi-Device Charging Stations

Does a charging station for multiple devices always require several wireless charging modules?

No. A product can use several independent modules or an integrated multi-channel PCBA. The appropriate solution depends on the number of devices, power requirements, internal space, and control method.

Are more coils always better for a charging station for multiple devices?

No. The number of coils should match the intended charging areas and control architecture. Additional coils can also affect cost, PCB layout, power consumption, and thermal performance.

Can a charging station for multiple devices charge a phone, smartwatch, and earbuds simultaneously?

Yes, but each charging area must be designed for its target receiver, coil structure, and power requirement. The complete product should be tested with the intended devices before production.

What information is required to customize a charging station for multiple devices?

Provide the product drawings, target devices, charging positions, input specifications, required output power for each area, enclosure material, and estimated quantity. These details allow the supplier to evaluate the coil, PCBA, power distribution, and thermal design.
