Wireless charging uses the principle of electromagnetic induction to generate a changing magnetic field in a changing electric field, and the changing magnetic field generates a changing electric field in the receiving coil of the cell phone.
This technology can be regarded as a separate transformer, where the transmitter and the receiver coil are placed in two separate devices.
The coil of the transmitter and the coil of the receiver are put into two separate devices, and when power is fed into the coil of the transmitter, a magnetic field is generated, and the magnetic field detects the coil at the receiving end and generates
current, thus creating a radio transmission system.
However, if the middle magnet is removed, the magnetic field will rapidly weaken as the distance increases, and the distance over which electricity can be transmitted is very short. Generally,
a few millimeters to a few centimeters of better transmission can be achieved. Therefore, it can only be applied to low-power, small wireless charging devices, such as cell phone wireless

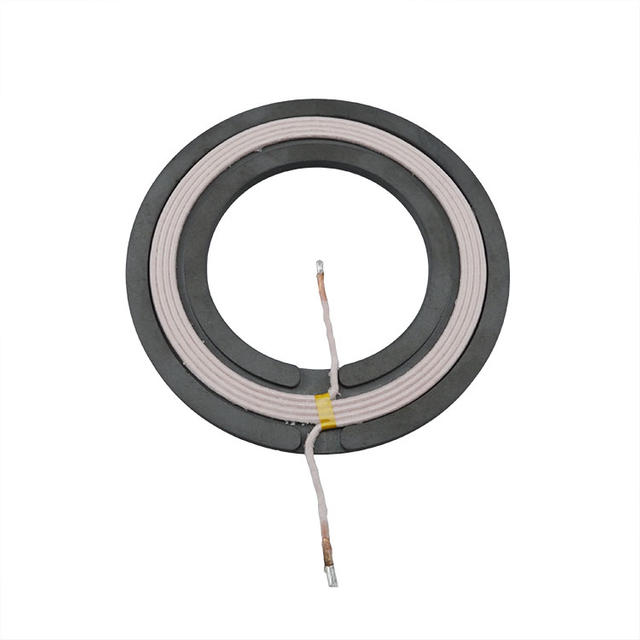

Wireless Charging Module
One of the advantages of the Wireless Charging Module is to get rid of the tedious variety of cell phone data cables. How to use Wireless Charging Module, Wireless Charging Module will be placed on the table. You can upload your cell phone to replenish power when idle, and it is easy to hold and use when using.
Wireless charging of cell phones is a relatively new charging method, and its principle is straightforward. It is to separate the main stage of the ordinary transformer to achieve the wireless
purpose. Of course, wireless charging works at a relatively high frequency, and if you give up the iron core between the straight line, you can play the role of energy transfer. Wireless
How to use the charger, the specific operation is as follows.
1. Place the phone with the wireless charging function on the wireless charging panel and align it to the seat to charge. Some of the wireless charging panels support cell phones
Models are different. Choosing the wireless charging panel according to your phone model would be best.
2. At present, long-distance charging is not supported. This technology can be reached later. What is wireless charging technology? According to a report in the United States, a research
This charger includes a transmitter with a plug and an electronic receiver. As long as there is a specific range of electricity
The charger includes a transmitter with a plug and an electronic receiver.
The wireless Charging Module uses radio waves to transmit radio waves, not only to transmit an electronic document but also to transmit energy, so wireless power transmission is possible.
Wireless power transmission is possible.
