Slight warmth during wireless charging does not necessarily indicate a fault. However, persistent heat accompanied by slower charging, repeated interruptions, or temperature warnings requires investigation.
Wireless charging overheating can involve power losses, coil positioning, thermal design, and operating conditions. Simply switching to a higher-power module is not a complete solution.
The relative position of the transmitter and receiver coils affects power transfer. Misalignment or increased spacing can reduce coupling efficiency.
Product designers should consider enclosure thickness, assembly gaps, and device placement together, rather than relying only on the module’s stated charging distance.
Coils are not interchangeable simply because they have the same dimensions. Inductance, resistance, and resonant capacitors must suit the circuit.
TI identifies incorrect capacitor values and resistive losses in the coil as possible causes of receiver-coil overheating. Any coil modification should therefore be followed by electrical and thermal validation.
A module that performs well on an open bench may behave differently inside the finished product. Available space, component placement, and thermal paths affect heat buildup.
Magnetic shielding must also work with the coil and nearby metal components. It should not be removed simply to make the product thinner.
High ambient temperatures, direct sunlight, and demanding applications running during charging can increase device temperature.
Some devices reduce charging speed or pause charging to manage temperature. Slow charging may therefore indicate that thermal protection is active.
Users can start by repositioning the device, checking whether its case interferes with charging, and removing metal objects such as coins from the charging area. If abnormal heating continues, stop charging and investigate the equipment.
Apple also recommends trying without thick, metal, or battery cases when wireless charging is slow or does not work.
For product developers, the first step is to identify where the heat originates, then examine the coil, circuit, and mechanical design.
Define the target power, available space, coil spacing, and operating environment before selecting a module. Validate the solution in the complete product before finalizing the design.
A useful test record should include:
Ambient temperature and measurement locations;

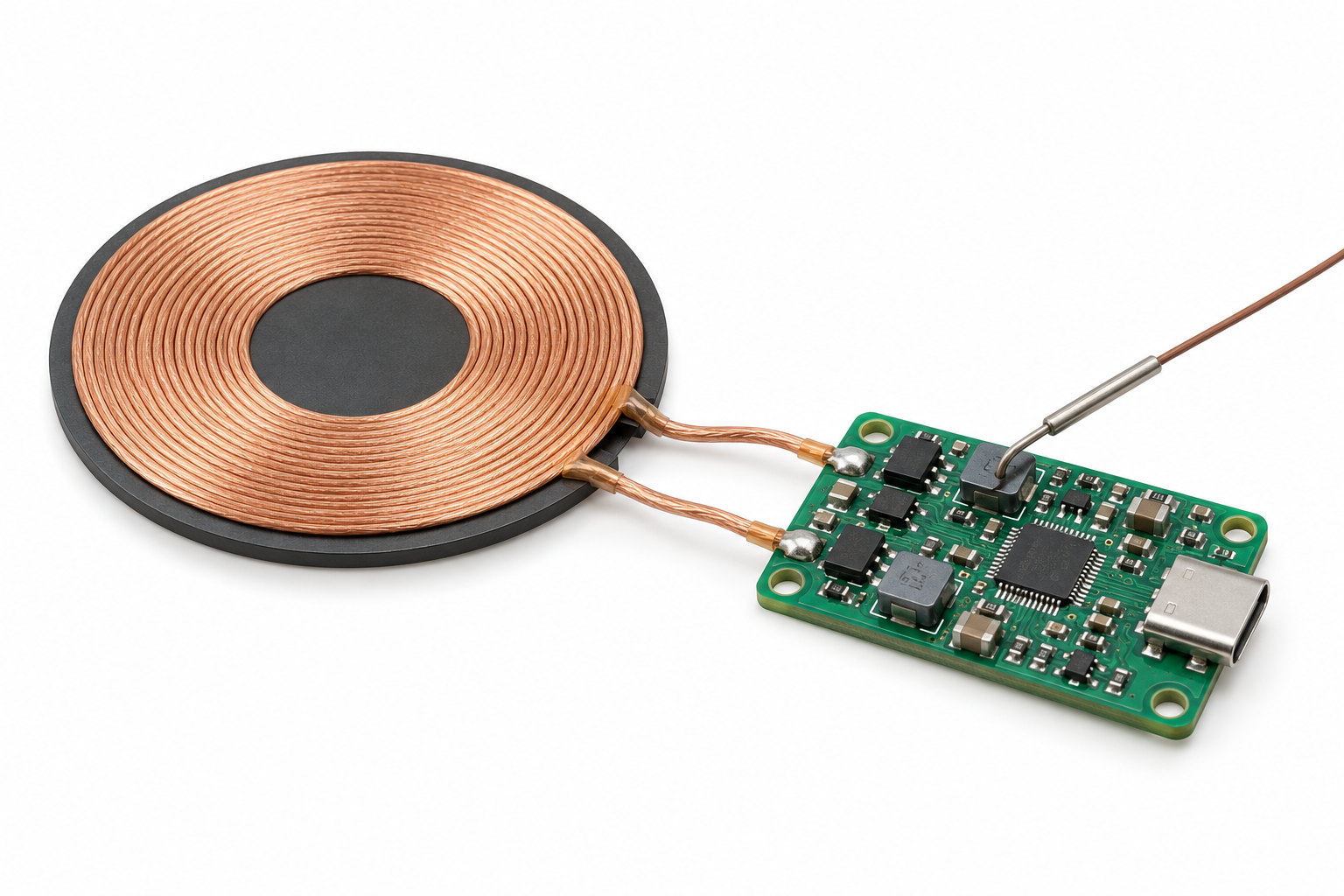

Coil, PCBA, enclosure, and battery temperatures;
Input power, output power, and charging status;
Performance with aligned and offset coils and different enclosure configurations.
Temperature rise is the difference between the measurement-point temperature and ambient temperature. For example, a measurement of 40°C at an ambient temperature of 25°C represents a 15°C temperature rise. This is a calculation example, not a product acceptance limit.
No. Slight warmth can be normal. Assess whether heating is abnormal using the product specifications, measured temperatures, and charging behavior.
Not necessarily. Identify the source of power losses or restricted heat dissipation first, then validate the power configuration. A higher rated output alone does not resolve overheating.
There is no single temperature limit for every product. Enclosures, batteries, and chips have different allowable temperatures. Evaluate them against component specifications, product requirements, and applicable standards.
Provide product drawings, enclosure material and thickness, available coil space, target charging power, and thermal requirements.
