A High-Quality Coil Defines the Performance of a Qi Compliant Charger

Efficient wireless charging starts with a properly engineered qi compliant charger and a high-quality transmitting coil. The charging coil is not simply a piece of wound copper wire; it directly affects magnetic coupling, power-transfer stability, heat generation and the charger’s ability to communicate reliably with the receiving device. A well-designed qi compliant charger combines the correct coil geometry, ferrite shielding, control circuit, foreign-object detection and thermal protection to deliver dependable power under real operating conditions. For manufacturers developing charging pads, smart furniture, vehicle consoles, control panels or embedded charging modules, selecting the right coil is one of the most important steps in the entire product design.

What Defines a Properly Engineered Qi Compliant Charger?

A qi compliant charger is designed to follow the technical requirements and communication methods of the Qi wireless charging standard. During charging, the transmitter and receiver communicate so that the system can detect the device, negotiate an appropriate power level and respond to changing operating conditions. However, charging performance is also affected by the power supply, control circuit, coil alignment, air gap, phone case, surrounding metal and operating temperature. This means that simply installing a wireless charging module does not automatically guarantee high efficiency. A reliable qi compliant charger must be engineered as a complete system in which the coil, electronics and mechanical structure work together. Accurate coil positioning improves magnetic coupling, while proper ferrite shielding helps direct the magnetic field toward the receiving device and reduces unwanted interaction with nearby components.

It is also important to distinguish between “Qi compliant” and “Qi Certified.” The Wireless Power Consortium states that claims such as “Qi compliant,” “Qi compatible” or “Works with Qi” do not by themselves prove that a product has completed official certification. A Qi Certified product must pass authorized compliance and interoperability testing before it can legally use the Qi logo. Manufacturers planning to advertise a final product as Qi Certified should follow the official Wireless Power Consortium certification process and verify the product in the WPC certified product database.

Coil Quality Determines Charging Efficiency and Stability

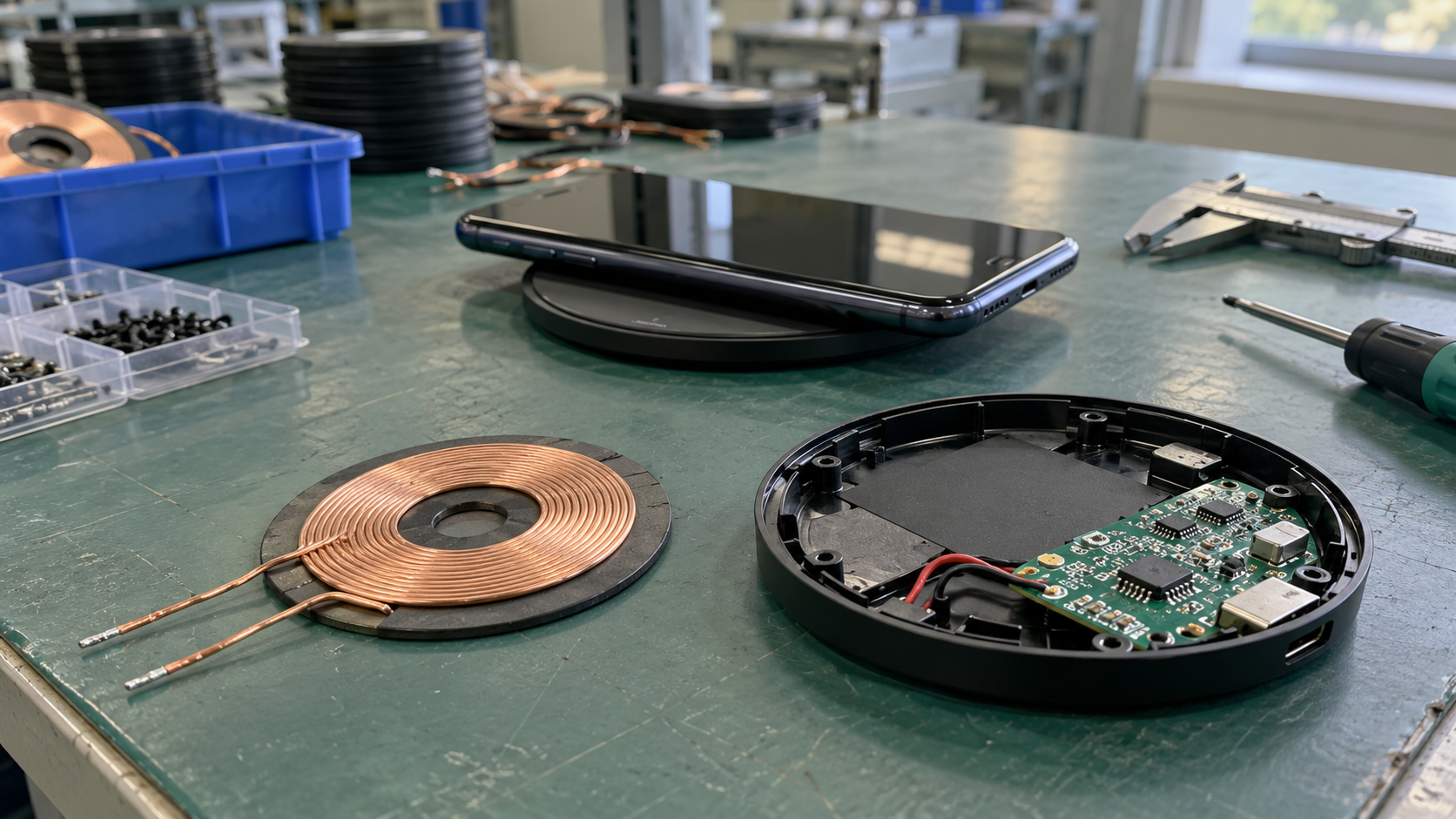

The coil inside a qi compliant charger determines how effectively electrical energy is converted into a magnetic field and transferred to the receiver coil. Important specifications include outer dimensions, inner diameter, inductance, DC resistance, quality factor, wire type, winding consistency, ferrite material and overall thickness. When these parameters are properly controlled, the qi compliant charger can maintain more stable power transfer and manage temperature more effectively. When the coil is poorly manufactured or incorrectly matched to the circuit, the charger may experience reduced output, excessive heat, unstable device detection or repeated charging interruptions.

Alignment is equally important. The transmitter and receiver coils do not need to touch, but they must be positioned within an effective charging area. Excessive misalignment weakens magnetic coupling and causes the system to work harder to deliver power. For this reason, the enclosure of a qi compliant charger should guide the device toward the intended charging position. Magnetic alignment, mechanical locating structures or a carefully defined charging surface can improve the user experience. Consistent automated winding also helps every coil maintain similar electrical and dimensional characteristics, which is especially important when a qi compliant charger enters mass production.

Designing a Reliable Wireless Charging Product

Developing a reliable qi compliant charger requires cooperation between mechanical, electronic and coil engineers. The product team should define the required power level, available installation space, distance between the coils, enclosure materials, thermal limits and nearby metal structures before selecting a coil. Custom coil development may be necessary when a standard coil cannot fit the product or provide the required performance. Engineers can adjust the coil’s dimensions, shape, winding structure, wire specification, inductance and shielding according to the application.

Testing should be performed with the intended devices, power adapters, enclosures and operating environments. A qi compliant charger that performs well on an open laboratory bench may behave differently after being installed behind plastic, wood, glass or another surface. Temperature rise, standby behavior, foreign-object detection and charging stability should therefore be evaluated in the completed product. A high-quality coil supports better performance, but the coil alone cannot make the final qi compliant charger compliant or certified; the complete charging system must be validated.

FAQ

What is a qi compliant charger?

A qi compliant charger is a wireless charger designed to operate according to the Qi wireless power specification. It normally uses inductive coupling to transfer energy between a transmitting coil in the charger and a receiving coil in a compatible device.

Is a qi compliant charger the same as a Qi Certified charger?

No. A product described as a qi compliant charger may be designed around the Qi specification, but this wording does not confirm official certification. Qi Certified products must complete authorized compliance and interoperability testing and receive registration from the Wireless Power Consortium.

Why is the coil important in a qi compliant charger?

The coil creates the magnetic field used to transfer power. Its dimensions, inductance, resistance, quality factor, shielding and position influence the efficiency, temperature and stability of a qi compliant charger.

Does every qi compliant charger work with every phone?

A qi compliant charger is intended for Qi-enabled devices, but actual charging performance can vary with device capability, supported power level, alignment, case thickness, input adapter and temperature. Official Qi certification provides stronger evidence of interoperability.

Can a custom coil be used in a qi compliant charger?

Yes. A custom coil can be designed for a specific enclosure, charging distance or power requirement. However, changing the coil may also require circuit tuning, thermal testing, foreign-object detection verification and testing of the complete qi compliant charger.

What information is required for a custom wireless charging coil?

The coil manufacturer normally needs the available length, width and thickness, target inductance, resistance or quality-factor requirements, power level, ferrite specifications, wire type, lead length, connector details and expected operating temperature. Information about the final qi compliant charger structure also helps engineers recommend a more suitable design.

Conclusion

Efficient wireless charging depends on more than placing a coil inside an enclosure. A reliable qi compliant charger requires a high-quality coil, accurate alignment, appropriate shielding, matched electronics and careful system testing. By controlling these elements from prototype development through mass production, manufacturers can create wireless charging products that deliver stable performance, manageable heat and a better user experience.

Need a custom wireless charging coil for your next project? Send us your dimensions, electrical requirements and application details for evaluation.
