Reliable Power Transfer Improves Wireless Charging Pad Efficiency and Stability

Reliable wireless charging requires consistent power transfer between the charging pad and the receiving device. A well-designed wireless charging pad must deliver stable energy while controlling heat, maintaining device alignment, and responding safely to abnormal operating conditions. Charging performance is not determined by a single component. It depends on the transmitter coil, ferrite shielding, control PCBA, enclosure, thermal structure, and receiving device working together as one system. When these elements are properly matched, users experience faster charging, fewer interruptions, lower operating temperatures, and better compatibility across different devices.

How Reliable Wireless Power Transfer Works

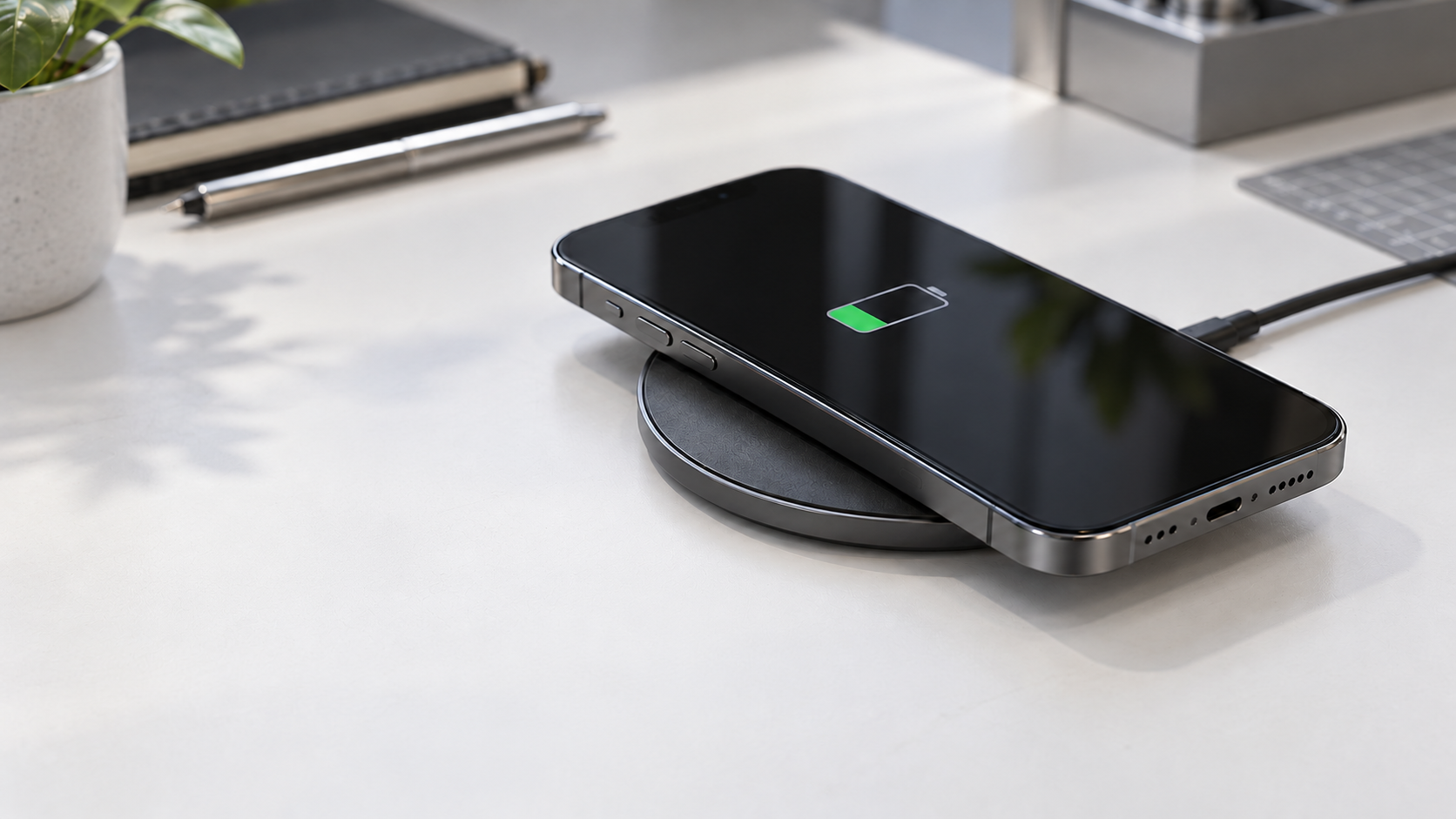

When a compatible device is placed on a wireless charging pad, alternating current passes through the transmitter coil and creates a changing magnetic field. The receiving coil inside the phone or electronic device captures part of this magnetic energy and converts it into electrical power. Although there is no direct electrical connection between the charger and the device, the position, size, distance, and electrical characteristics of the two coils must be reasonably matched. A reliable wireless charging pad also requires a stable control circuit to regulate power, communicate with the receiving device, monitor temperature, and activate protection functions when necessary.

Consistent power transfer is important because energy that is not efficiently delivered to the receiving device is often converted into heat. If the coils are poorly aligned, separated by excessive distance, or mismatched electrically, charging may slow down or stop repeatedly. A poorly designed wireless charging pad may also reduce its output because of thermal protection, especially when a thick phone case or metal accessory increases the distance between the transmitter and receiver. Good system design therefore balances charging speed, temperature, alignment tolerance, and long-term stability rather than focusing only on maximum power.

Key Components That Determine Performance

The transmitter coil is the core of every wireless charging pad. Its diameter, shape, number of turns, wire type, inductance, resistance, and winding consistency all influence the magnetic field and power-transfer efficiency. A precisely wound coil produces more consistent electrical characteristics, which makes system tuning and mass production easier. The coil should be selected according to the target power, receiving device, available installation space, enclosure thickness, and expected charging distance. A coil that performs well in an open-board test may behave differently after it is installed inside the final product enclosure.

Ferrite shielding is normally positioned behind the transmitter coil to guide magnetic energy toward the receiving device and reduce unwanted magnetic fields behind the charger. A wireless charging pad with correctly selected ferrite can achieve better field control and reduce interference with nearby components. The ferrite material, thickness, shape, permeability, and installation position should match the coil design. Damaged, incorrectly sized, or poorly positioned ferrite may reduce efficiency and create inconsistent charging results.

The control PCBA is equally important because it drives the coil, manages communication, regulates input power, and monitors operating conditions. Depending on the design, the PCBA may provide overcurrent protection, overvoltage protection, temperature monitoring, foreign-object detection, and automatic power adjustment. Even a high-quality coil cannot compensate for an unstable circuit design. For this reason, the coil and PCBA should be developed and evaluated as a complete wireless charging system rather than purchased and tested separately.

Thermal design and mechanical alignment also have a direct impact on performance. A higher-power wireless charging pad requires low-resistance coils, efficient PCB layout, appropriate component selection, and an enclosure that allows heat to dissipate. At the same time, the enclosure must help users position the device correctly. Magnets, positioning guides, stands, and multi-coil structures can improve alignment, but every additional material placed between the coils may affect charging distance and efficiency. Final testing should therefore be performed with the actual enclosure, phone case, input adapter, receiving device, and expected ambient temperature.

Design and Manufacturing Recommendations

For brands developing a wireless charging pad, the transmitter coil should first be matched to the intended receiver and target power. The distance between the coils should be kept as small and consistent as possible, while the ferrite material and PCBA should be selected according to the operating frequency and thermal requirements. Engineers should test different device positions, phone cases, input voltages, and charging states. Temperature should be measured at the coil, PCB, enclosure surface, and receiving device. Protection functions should also be verified under misalignment, foreign-object, overcurrent, and high-temperature conditions.

Manufacturing consistency is just as important as the original design. Testing each wireless charging pad helps identify damaged coils, incorrect solder joints, assembly problems, and unstable electrical performance before shipment. Recommended quality checks include coil inductance and resistance measurement, visual inspection, PCBA functional testing, input-current testing, charging-distance testing, temperature-rise testing, and final charging verification with compatible devices. Automated winding and controlled adhesive application can improve production consistency, but automation should always be supported by electrical testing and clearly documented inspection standards.

Choosing the Right Supplier

Before selecting a wireless charging pad supplier, buyers should evaluate more than the quoted unit price. A capable manufacturer should be able to customize coil dimensions, inductance, wire type, ferrite, lead length, connector, PCB layout, input requirements, and mechanical structure. The supplier should also explain how the coil, PCBA, shielding, and enclosure affect the finished product. Prototype support is especially important because it allows the customer to verify charging performance, temperature, compatibility, and installation conditions before committing to mass production.

Buyers should ask whether the supplier can develop and test the coil and PCBA together, provide samples, support both small trial orders and larger production volumes, and maintain consistent quality between batches. A reliable wireless charging pad project requires communication between the customer’s product team and the supplier’s engineering and production teams. Providing clear information about the application, target power, available dimensions, connector type, charging distance, and expected operating environment will help the supplier recommend a more suitable solution.

FAQ

1. What is a wireless charging pad?

A wireless charging pad transfers electrical energy to a compatible device through an electromagnetic field. It normally contains a transmitter coil, ferrite shielding, a control PCBA, and an enclosure that positions the device above the charging area.

2. Why does a wireless charging pad become warm?

Some energy is naturally lost during wireless power transfer and converted into heat. Poor alignment, excessive charging distance, high coil resistance, unsuitable ferrite, an inefficient PCB layout, or a thick phone case may increase the operating temperature.

3. Does a larger transmitter coil always provide better performance?

No. Coil size must be matched to the receiving coil, target power, operating frequency, enclosure, and available installation space. A larger coil will not automatically improve charging if the complete system is not properly tuned.

4. Can one wireless charging pad work with every device?

Compatibility depends on the charging standard, communication protocol, coil alignment, supported power level, device design, and protective case. One charger may support many compatible products, but charging speed and temperature can vary between device models.

5. Why is ferrite installed behind the charging coil?

Ferrite helps guide the magnetic field toward the receiving device and limits unwanted magnetic energy behind the coil. It can improve field control, support charging efficiency, and reduce the effect of the magnetic field on nearby electronic components.

6. Can the coil and PCBA be customized?

Yes. Manufacturers can customize the coil shape, diameter, inductance, wire type, ferrite, lead length, connector, PCB layout, input requirements, output power, and mechanical structure according to the customer’s product design.

Conclusion

A dependable wireless charging pad is the result of coordinated coil design, stable electronics, accurate alignment, suitable ferrite shielding, controlled temperature, and consistent production. Dongguan Fuying Electronics provides customized wireless charging coils, transmitter and receiver modules, inductor coils, and integrated coil-and-PCBA solutions. We support prototype development, OEM and ODM customization, electrical tss production for consumer electronics, automotive accessories, smart home products, and other electronic applications.

For a customized solution, please provide your target power, product dimensions, coil size, input requirements, connector type, and application details.
