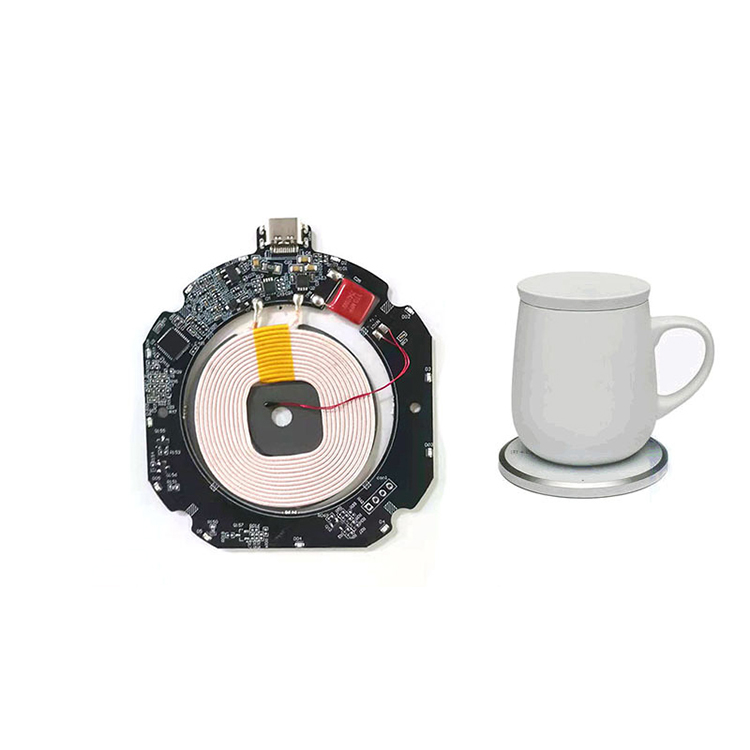

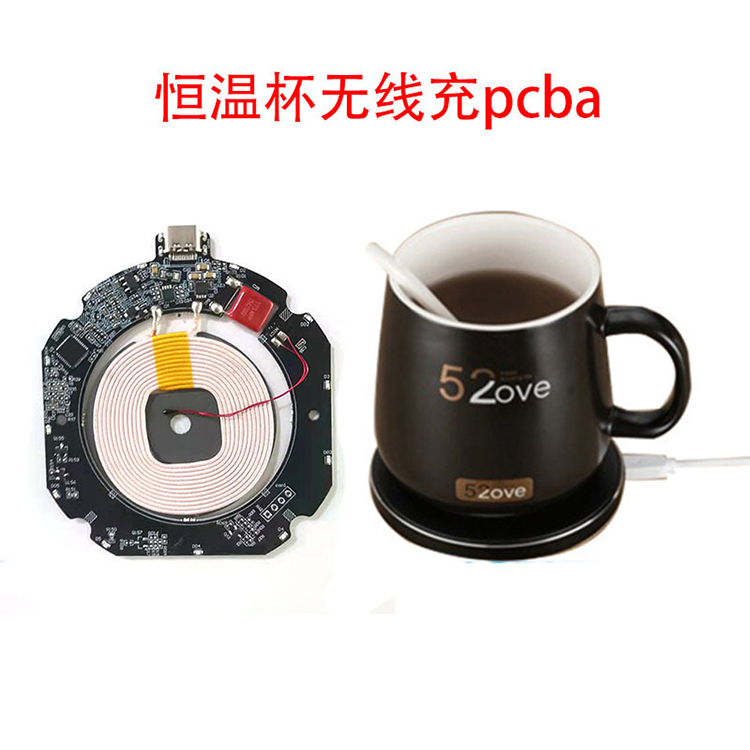

Thermostatic Cup Wireless Charging Circuit Board for Smart Home,wireless charging module DIY,wireless charging coils,Coil circuit board Suitable for wireless chargers

Input interface: type-c
Input: 12V/2A 9V/2A 5V/2A
Output: 18 w / 15 w / 10 w / 7.5 w / 5 w
Cup: 55 degrees thermostat (18W)
Frame size: 85*75mm
Diameter of coil: 50mm
Conversion rate: 78%
Charging distance: 2-8mm
Over voltage protection
Under voltage protection
Foreign body detection
Short circuit protection
Temperature protection
Over-current detection
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

  • MIMAN

Input interface: type-c

Input: 12V/2A 9V/2A 5V/2A

Output: 18 w / 15 w / 10 w / 7.5 w / 5 w

Cup: 55 degrees thermostat (18W)

Frame size: 85*75mm

Diameter of coil: 50mm

Conversion rate: 78%

Charging distance: 2-8mm

Over voltage protection

Under voltage protection

Foreign body detection

Short circuit protection

Temperature protection

Over-current detection

555wireless-charging_01wireless-charging_02wireless-charging_03wireless-charging_04wireless-charging_05wireless-charging_06wireless-charging_07wireless-charging_12wireless-charging_13
