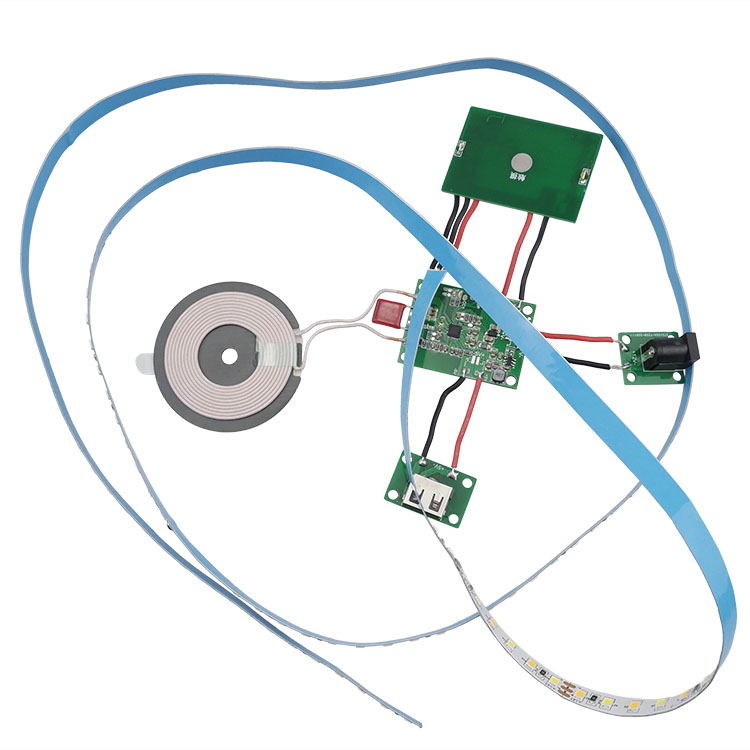

Pcba All-in-one Wireless charging board 15W wireless charging board with night light function control board
1. Working voltage and current: DC 12V/2A
2, wireless charging output voltage and current: 9V/1.66A(15W)
3, wireless charging output power: 15W/10W/7.5W/5W
4, charging distance: 2-8mm
5. Charging frequency: 100-205khz
6. Foreign body protection FOD
7, PCB size :29.5*40*2.6mm (can be customized)
8, coil specifications: 44*1.5mm, lead length: 15mm (can be customized change)
9, power indicator: red and blue lights flashing 3 times alternately; The standby red light is long on, the working blue light is long on, the foreign body red and blue light alternates quickly, and the full off light (can be customized)
10, laboratory, can be QI/CE/FCC/KC/EMC, etc
11, over temperature protection: 60 degrees to reduce the power output (can be customized change)
12, USB A output: 5V/2A
13. Touch desk lamp: 3-speed control touch wireless charging
