Wholesale Foldable 3 in 1 Wireless Charger Stand Portable Fast Magnetic Multifunctional Wireless Charging Fast Charging Wireless

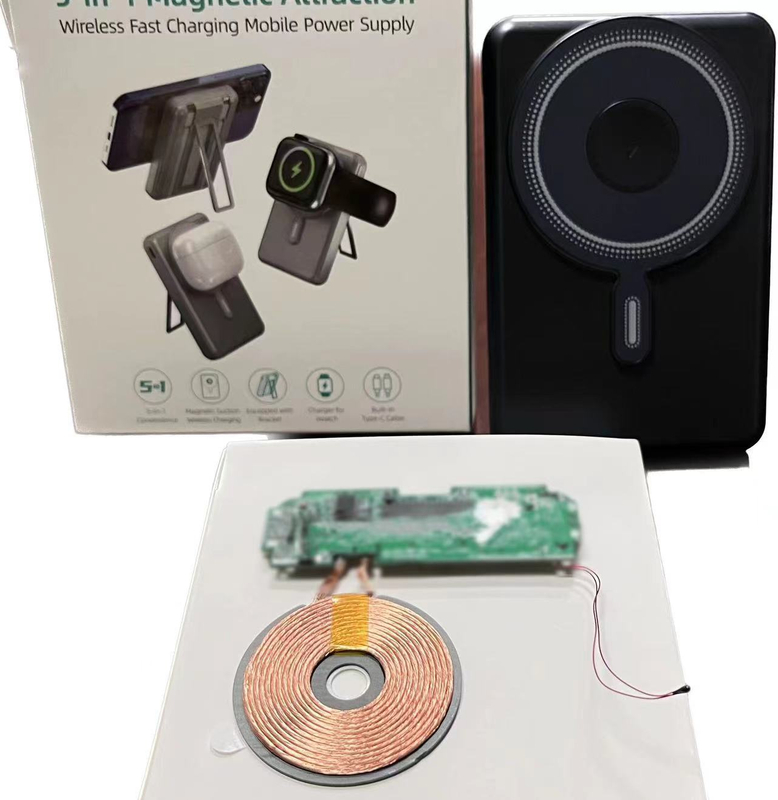

5-in-1 magnetic wireless fast charge mobile power supply Can be used for wireless charging of mobile phones, headphones, watches and other products.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • 5-in-1 magnetic wireless fast charge mobile power supply

  • MIMAN

Product parameter
Name: 5-in-1 magnetic wireless fast charge mobile power supply
Capacity :10000mAh
Input :5V-3A, 9V-2A(Type-C)
Output :5V-3A, 9V-2.22A, 12V-1.67A(Type-C)
15W/10W/75W/5W(Wireless)
5V-3A, 9V2.22A,
12V-1.67A(USB-C Cable)5V-2.4A(Lightning Cable)
Watch 2.5w(Max)
Total output :5V-3A Max
Size :107*69.8*19.5mm
Color: Black/white/Purple/gray
Material :PC+ABS+ zinc alloy
Product list: Mobile power x1, manual x1, data cable x1
Note: When any two ports (including wireless charging) are input/output at the same time, the output automatically turns off the fast charging mode (9V/12V) and enters the 5V voltage output mode (wireless charging automatically switches to 5w).
Note: The USB-C port comes with a cable to support Apple 15 fast charging, provided that the C port is inserted first (the fast charging lamp is green) without pressing the button to activate the wireless charging premise. If the simultaneous activation is 5w charging, the wireless charging light is blue.
Solution :(You need to double click the button to turn off the wireless charging, and then insert the USB-C cable to achieve fast charging)

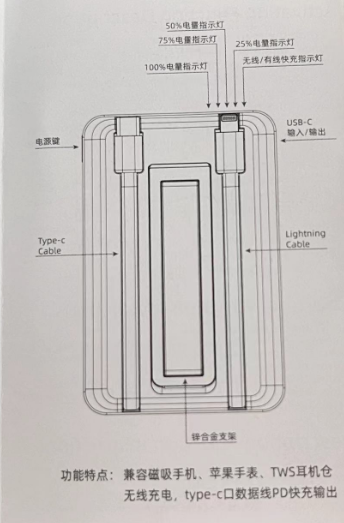

Indicator status display
Green long on :Type-C input/output fast charging
USB-C Cable outputs fast charging
Ice blue long light :7.5W/10W/15W wireless fast charging
Green/ice blue Blinking: Wireless FOD foreign body detection
Long white light: power indicator

Wake button function description
When the machine enters the standby state, press once (within 0.5 seconds) the power indicator light will display the current power 1, representing 25% of the power. After the light is on for 30 seconds, it will enter the standby state again.
When the mobile phone is charged to 0% of the mobile power supply, the mobile power supply will automatically shut down, and the LED display mode is shutdown.
Click the button: start the mobile power supply, turn off the light after the blue light flashes twice, keep the green light on for 3 seconds, keep the ice blue light on to start the wireless charging function;
Double click the button to turn off the wireless charging function when the device is powered on.

Charging function description
LED light color 1/2/3/4 white light
When the charger is plugged in and charged to the power supply, the LED displays the amount of electricity by dot flashing increments.
See LED power display mode
After the 4 LED lights are full, they are fully charged.
Only when the output voltage of the charger is 5V~12V can the machine be charged normally.

Discharge function description
Press the power button, start the mobile power to connect the mobile phone to charge, the corresponding power LED light long bright, as the power quantity decreases and the number of lights decreases. When the battery voltage is below 3.1V, the last light flashes for a low battery alarm.
When the battery voltage is lower than 3.0±0.1V, the output will be stopped, and the LED light will be extinguished after the discharge. When unplugging the phone to interrupt the charging, the indicator will be on for 30 seconds and then go off to enter the standby state. Press the power button, start the mobile power supply and the power display light, the wireless charging output can help the wireless charging device charge.
Foreign body detection: When a foreign body is found during wireless charging, the green light and ice blue light flash and stop charging, and the metal foreign body can be charged only after being removed.badecae3bac699459d2e63860659191bd551c195a4e87e5cc8ec48fd53e145e34360cf22a3a3e75924127cbc26dbd



wireless-charging_01wireless-charging_02wireless-charging_03wireless-charging_04wireless-charging_05wireless-charging_06wireless-charging_07wireless-charging_12wireless-charging_13
