MIMAN
Product selling points:
1, can do 5W,10W,15W coil, shape can be customized, wireless charging, unlimited freedom, 360 degrees of arbitrary charging, does not hurt the battery; 2, has been TIAF16949 certification, the whole process of 75 quality control parameters;
Application areas:
It is mainly used in various wireless chargers, car charging, mobile phone quick charging, beauty instrument charging, electric toothbrush, electric car, portable electronic products, household appliances, micro-power applications, robot/UAV, underwater applications, special applications and so on

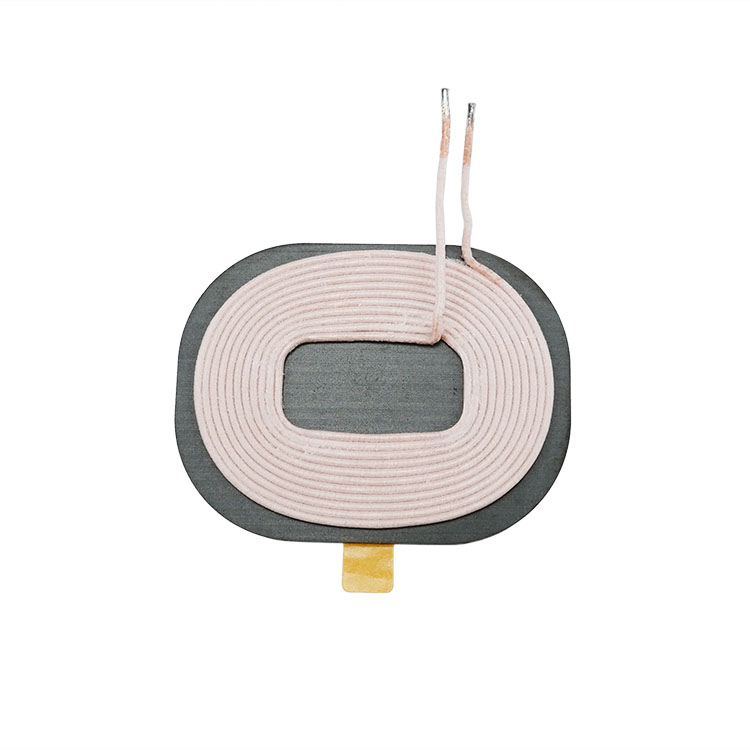

Product specification
Spec:37.3*18.5 0.19*2C*14Tc
Wire:Φ 0.18 2Lockcs
ID:37.3*19.5mm
OD:49.2*33.5mm
Inductance:14.4±10%uH
DCR:520±10%mΩ
Thinckness:0.25mm Max
Turn:14Ts
