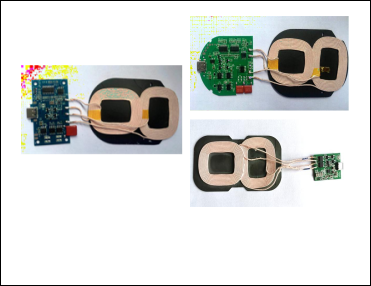

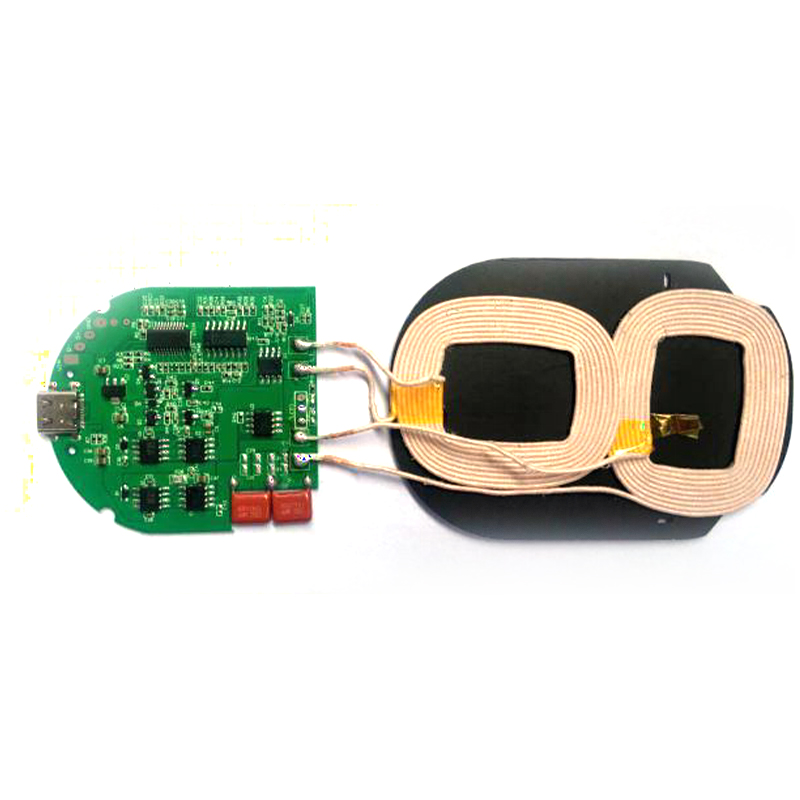

FHQ50T -2C Double Coil,wireless charging,wireless charging pad,wireless charging coils, wireless charging module,Wireless charger motherboard

1. Working voltage and current DC 5V/9V 2A

2. Wireless output voltage and current: 5V/9V 1A

3. Wireless output power 5W 7.5W 10W

4Charging distance 2-6mm

5. Charging frequency: 100-205KHZ

6. Foreign body protection FOD

7. PCBA size specification: 56*35*2.5MM

8. Coil specification: 50*3MM

Lead length: 30MM

Power plug specifications: Mic-USB /TYPE-C optional

10. Power indicator: the blue light flashes off three times when it is powered on, it stays on during working, and it turns off when there is no load, and it flashes for protection against foreign objects.

Features: commonly used 10W standard dual-coil module, features high cost performance, board size 30*25*2.5mm
