MQ09T- 15W,wireless charging,wireless charging pad,wireless charging coils, wireless charging module,Wireless charger motherboard

MQ09T- 15W,wireless charging,wireless charging pad,wireless charging coils, wireless charging module,Wireless charger motherboard
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

  • MQ09T

  • MIMAN

Working voltage and current DC 5V/9V 12V 2A

Wireless output voltage and current: 5V/9V 12V 1A

Wireless output power 5W 7.5W 10W 15W

Charging distance 2-6mm

Charging frequency: 100-205KHZ

Foreign body protection FOD

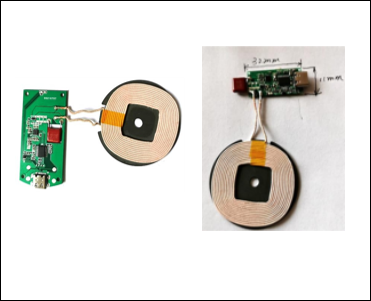

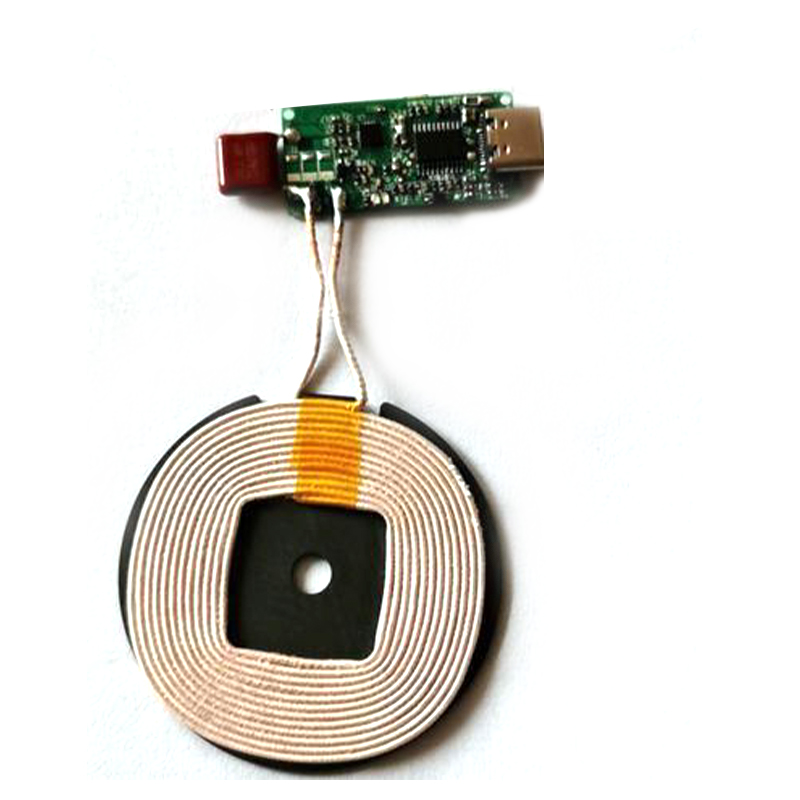

PCBA size specification: 56*28*2.5MM

Coil specification: 50*3MM lead length: 30MM

Power plug specifications: TYPE-C head optional

Power indicator: the blue light flashes off three times when power on, keeps on when working, off when there is no load, flashes for foreign body protection

Features: Commonly used 15W standard modules, featuring low heat generation and high efficiency. Minimum size board: 32*11MM
