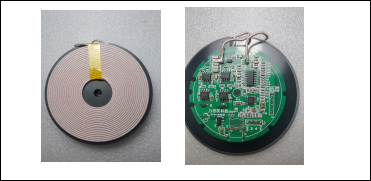

  • Wireless charging Module Model: MP1202

  • MIMAN

Input voltage and current: DC 12-18V/3A

Output voltage and current: 12V/2A

Charging protocol: none

Charging frequency: 90-130KHZ

Overcurrent protection: Yes

FOD function: None

Conversion efficiency: more than 80%

Charging distance: customizable default 6MM

Coil diameter: can be customized default 50MM

TX PCB size: about 50*5O*7MM

RX PCB size: about 30*20*7MM

Brief description: The output voltage and current of this module are 12V2A. The circuit design materials are high and streamlined, the conversion efficiency is high, the maximum power is 25W, and the charging distance can be fine-tuned and customized according to actual requirements.

wireless-charging_01wireless-charging_02wireless-charging_03wireless-charging_04wireless-charging_05wireless-charging_06wireless-charging_07wireless-charging_12wireless-charging_13
