Wireless charging Module Model: P500B,wireless charging,wireless charging pad,wireless charging coils, wireless charging module,Wireless charger motherboard

Wireless charging Module Model: P500B,wireless charging,wireless charging pad,wireless charging coils, wireless charging module,Wireless charger motherboard
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

  • P500B

  • MIMAN

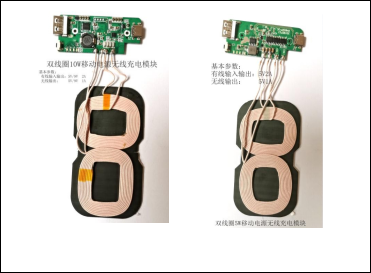

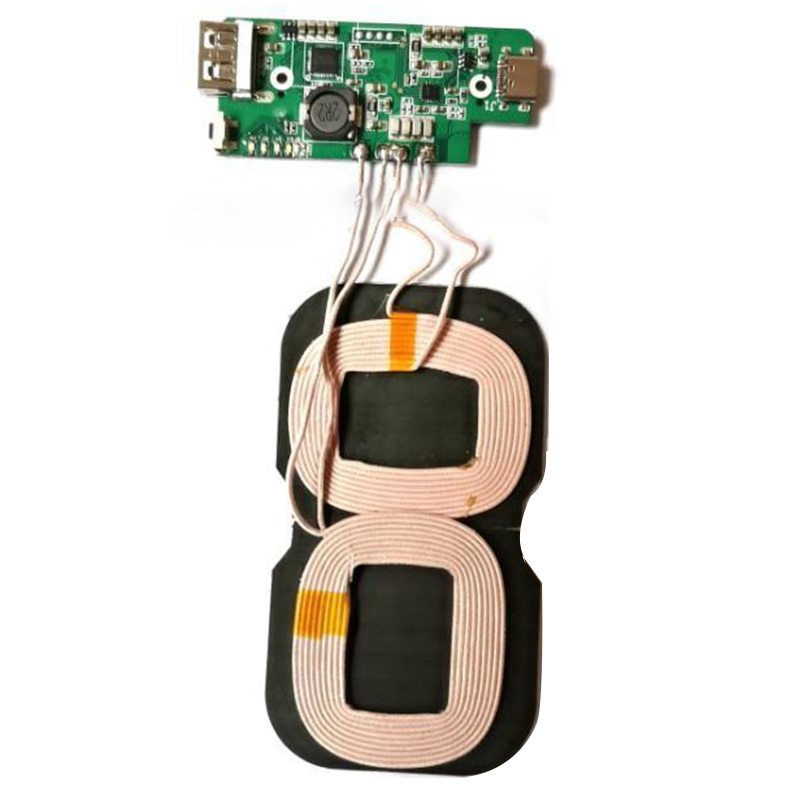

Description: mobile power dual-coil wireless charging module

Working voltage and current DC 5V/9V 2A

Wireless output voltage and current: 5V/9V

Wireless output power 5W 7.5W 10W

Charging distance 2-6mm

Charging frequency: 100-205KHZ

Foreign body protection FOD

PCBA size specification: 65*25*5MM

Coil specification: 110*50*3.5MM

Lead length: 30MM

Power plug specifications: TYPE-C head

LED indicator: press 4 blue lights for 30 seconds to display the power, the corresponding power light is always on when working, the red light is on when the wireless charging is started, and the foreign body protection red light flashes.

Features: mobile power dual-coil wireless charging module, 5W 10W optional, with TYPE-C power head input, USB A port 10W output

2wireless-charging_01wireless-charging_02wireless-charging_03wireless-charging_04wireless-charging_05wireless-charging_06wireless-charging_07wireless-charging_12wireless-charging_13
