Wireless charging module GQ12T-3C,wireless charging,wireless charging pad,wireless charging coils, wireless charging module,Wireless charger motherboard

Wireless charging module GQ12T-3C,wireless charging,wireless charging pad,wireless charging coils, wireless charging module,Wireless charger motherboard
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • MIMAN

1. Working voltage and current DC 12V 1A

2. Wireless output voltage and current: 5V 1A

3. Wireless output power 5W

4. Charging distance 2-8mm fine-tuned according to customer's actual situation

5. Charging frequency: 100-205KHZ

6. Foreign body protection FOD

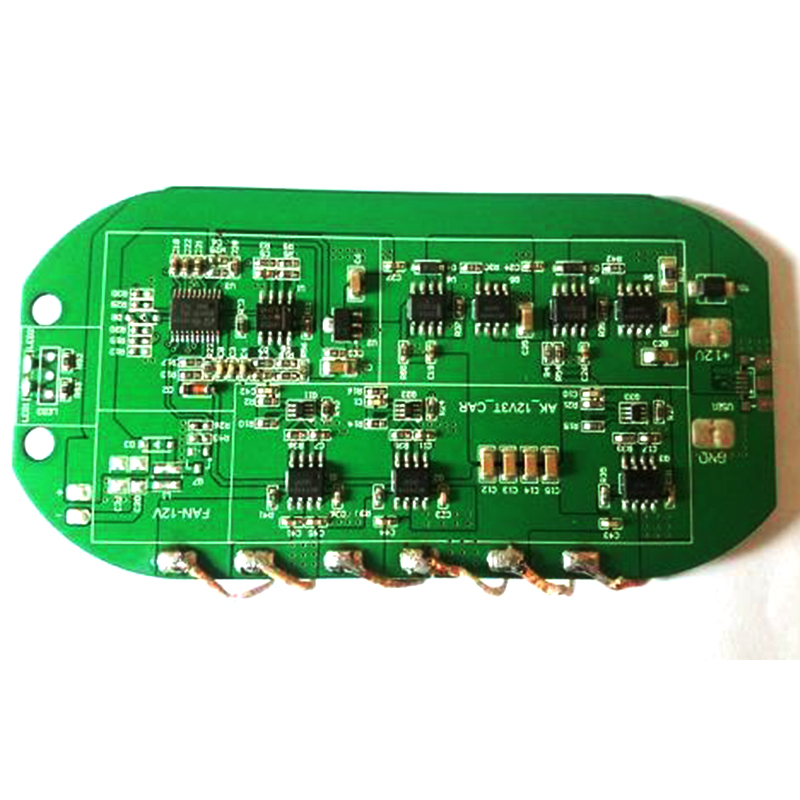

7. PCBA size specification: 103*53*6MM

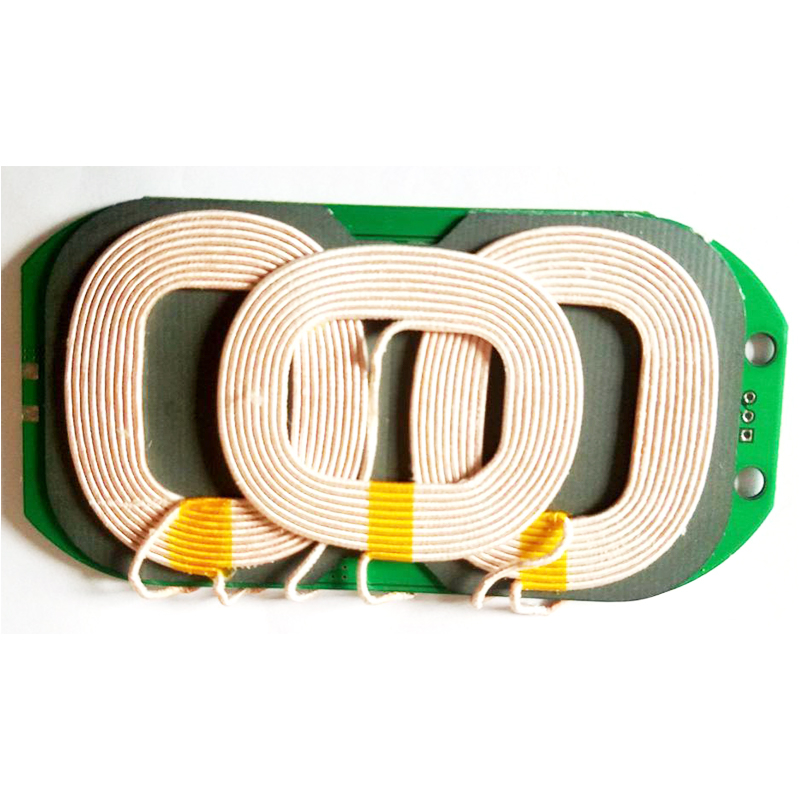

8. Coil specification: 50*3MM

Lead length: 15MM

9. Power plug specifications: Mic-USB

10. Power indicator: the blue light flashes off three times when it is powered on, it stays on during working, and it turns off when there is no load, and it flashes for protection against foreign objects.

Features: The input voltage is 12V, which can be used in vehicles, desk lamps and other electronic products with a voltage of 12V.
